Βάση για Action Camera Περιστρεφόμενη και με Ανάκληση FASTen Ng002

Product description:

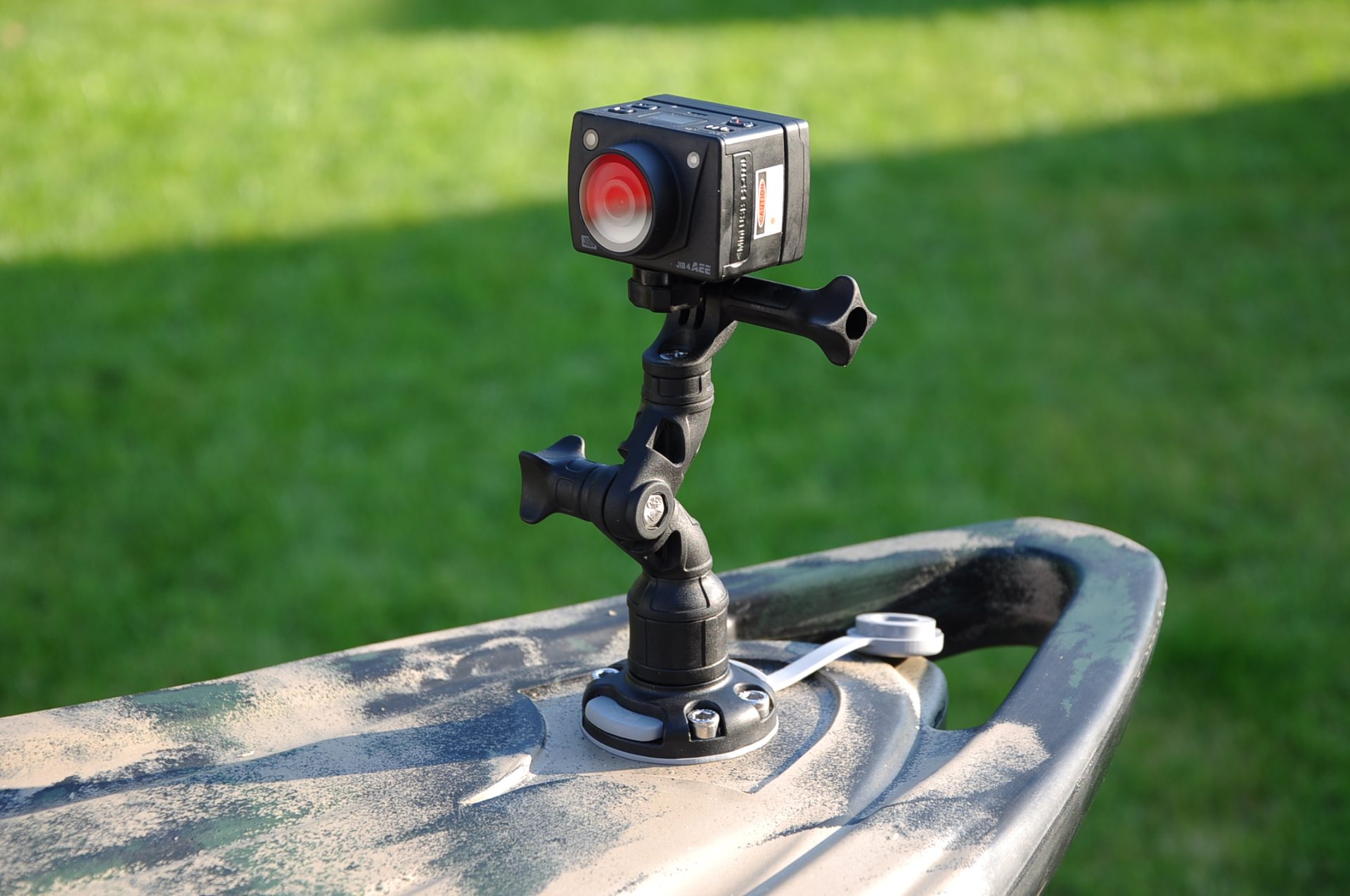

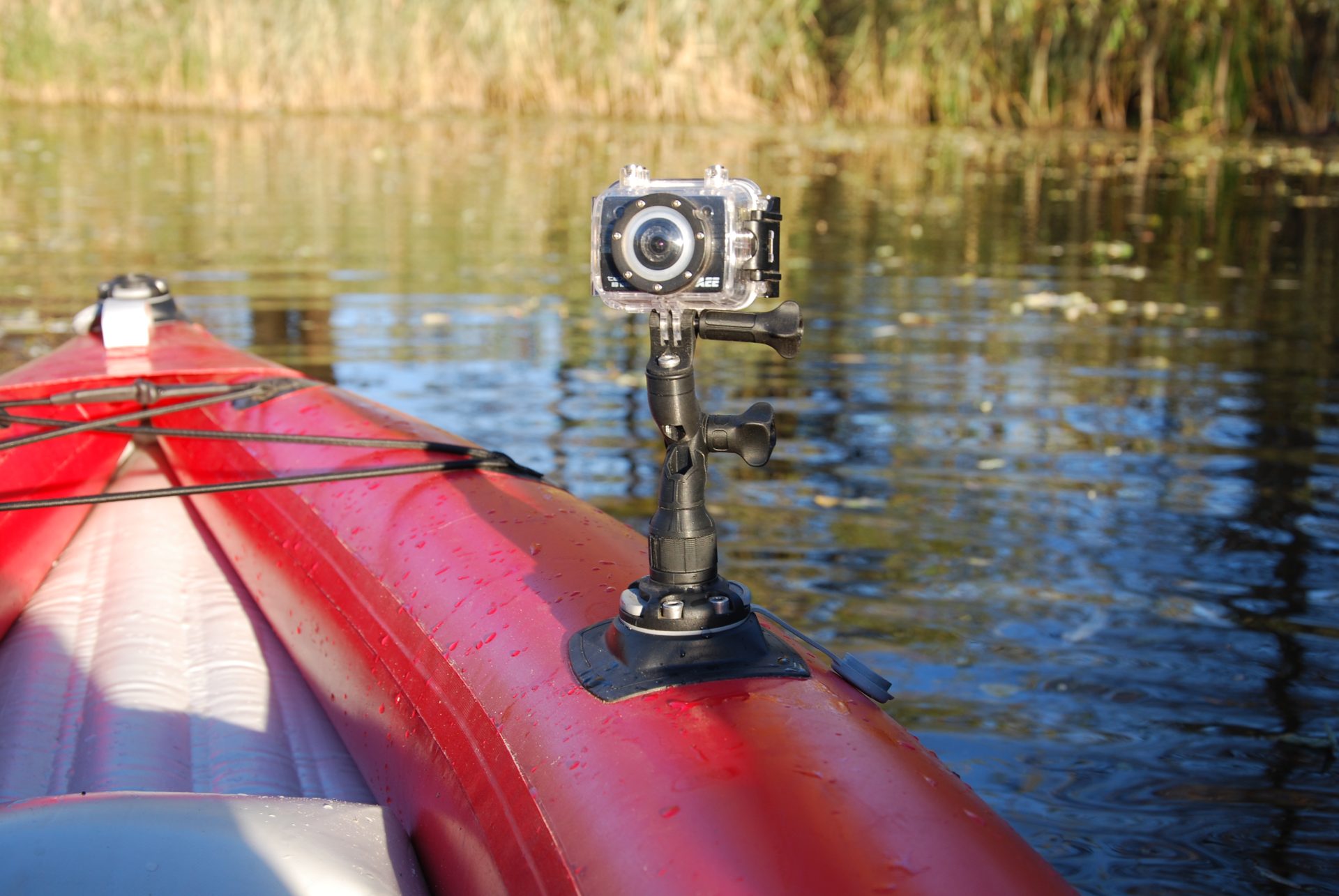

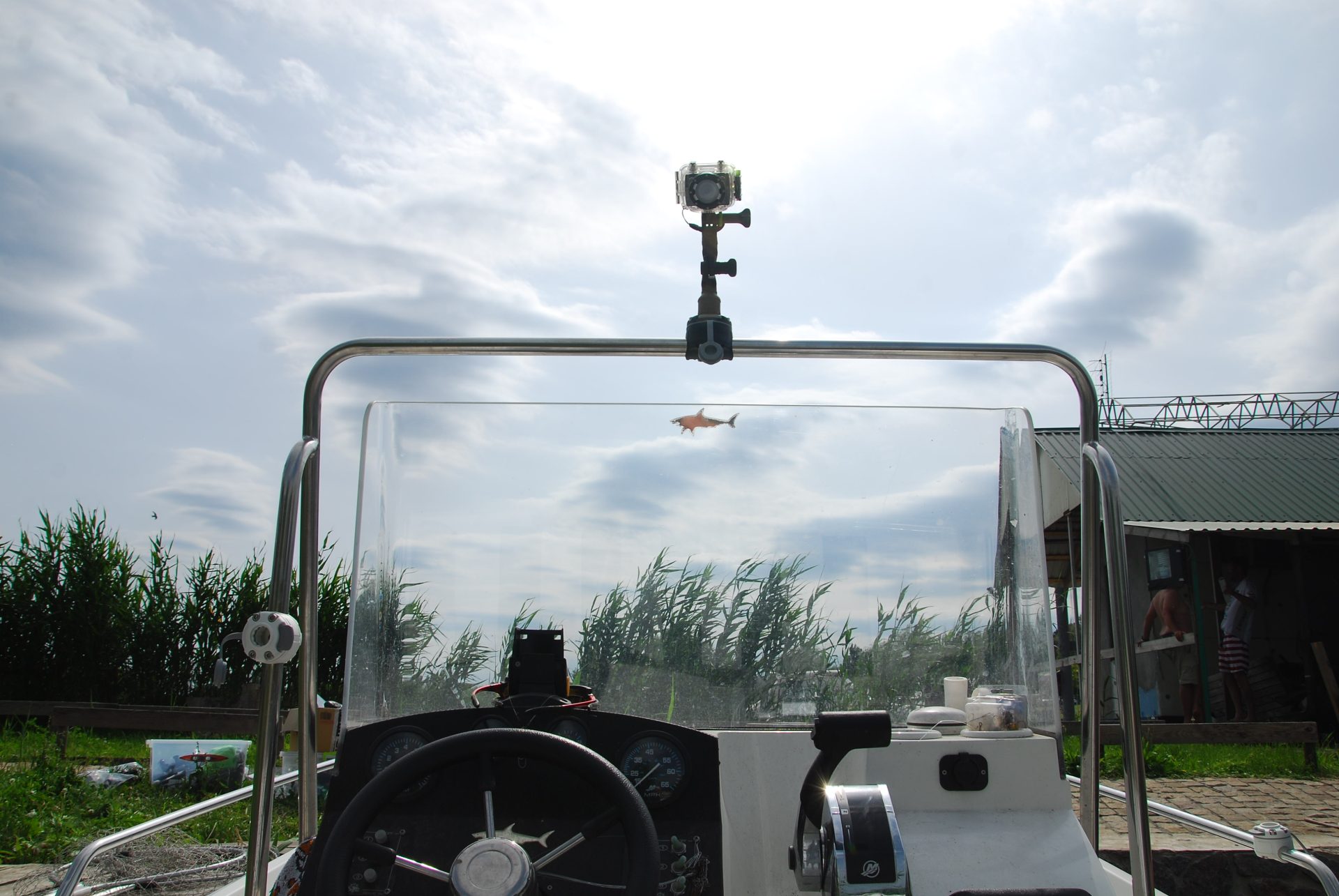

• This holder is suitable for installation of most popular action cameras on different vessels: inflatable boat, fishing kayak, aluminium motorboat, RIB or belly boat (float tube). It can be used for streaming video on the move and will help you in capturing any bright moments of on-water activities.

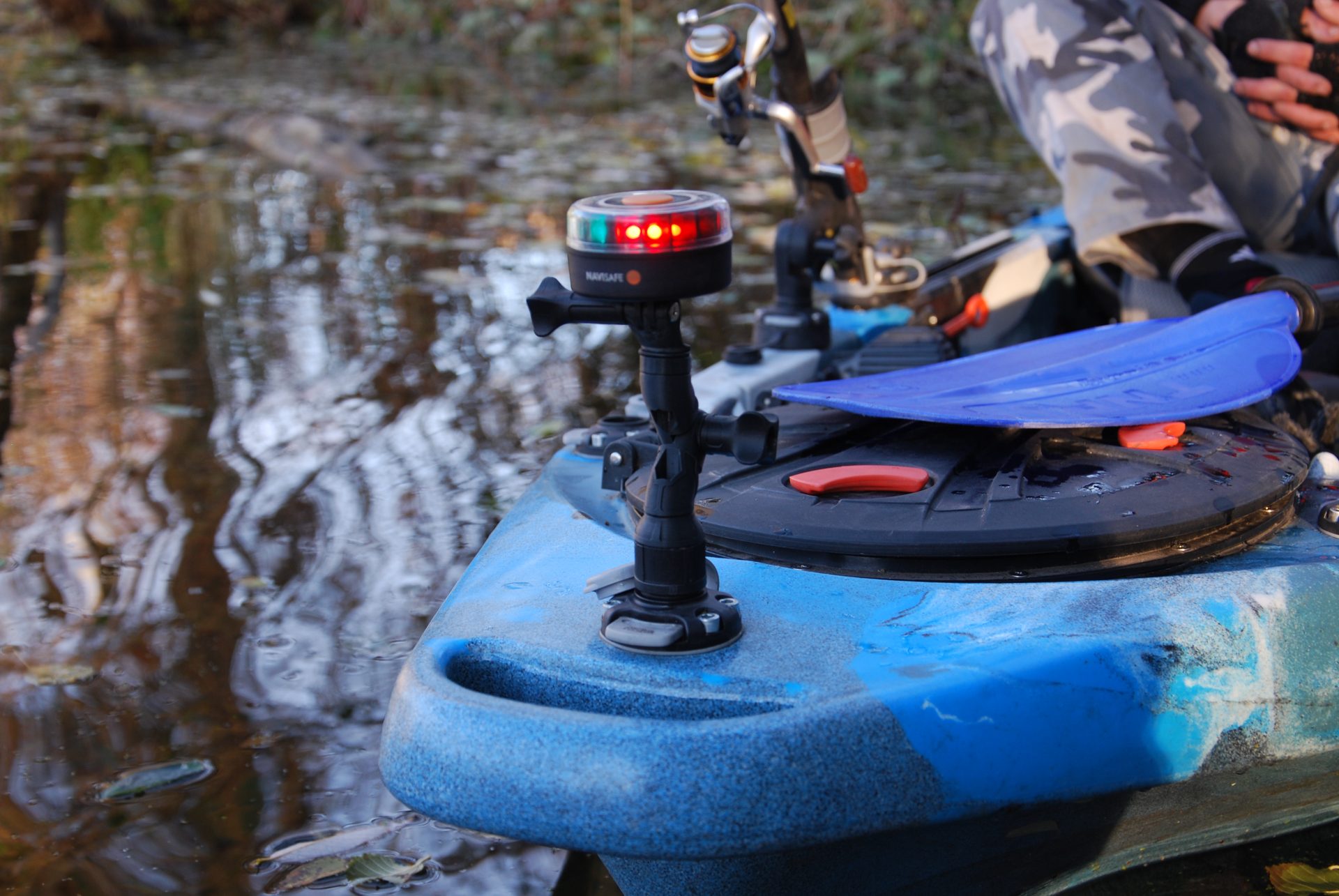

• The design provides a 2-to-3 GoPro connector and a 1/4” screw thread for mounting different action cameras. Such a system is scalable, allowing you to add additional accessories. For example, adding an Ng004 holder with two more 2-to-3 GoPro connectors, you can get the opportunity to fix the lighting (a flashlight) or a second action camera.
• The design allows for adjusting the optimal position of the mounted equipment and quickly changing it during the streaming. You can fully rotate the whole structure or the camera itself. You can also tilt the camera using the mounting connector or adjust the position of the spline joint with 15° increments.
• The holder can be installed in any BORIKA FASTen® mounting system or mount, and using conversion adapters — in the mounting systems from other brands (SCOTTY®, RAM®, RAILBLAZA®, YakAttack®, etc.).

Materials: fiberglass-reinforced polyamide, A2 (AISI 304) stainless steel.

In the package: an Ng002 action camera holder.

Tips on using & installation:

• The accessory can be supplemented with an Ex400 extender or with FEx220, FEx250 extender mounts, which will allow you to move the camera at a distance of 20 — 30 cm from the attachment point.
• The assembly can be supplemented with a SBa038 adapter, which has a ball-and-socket joint and allows the fixed accessory to be moved 360° over the 1.5″ (38 mm) ball and fixed at the selected position.
• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.

Technical Details:

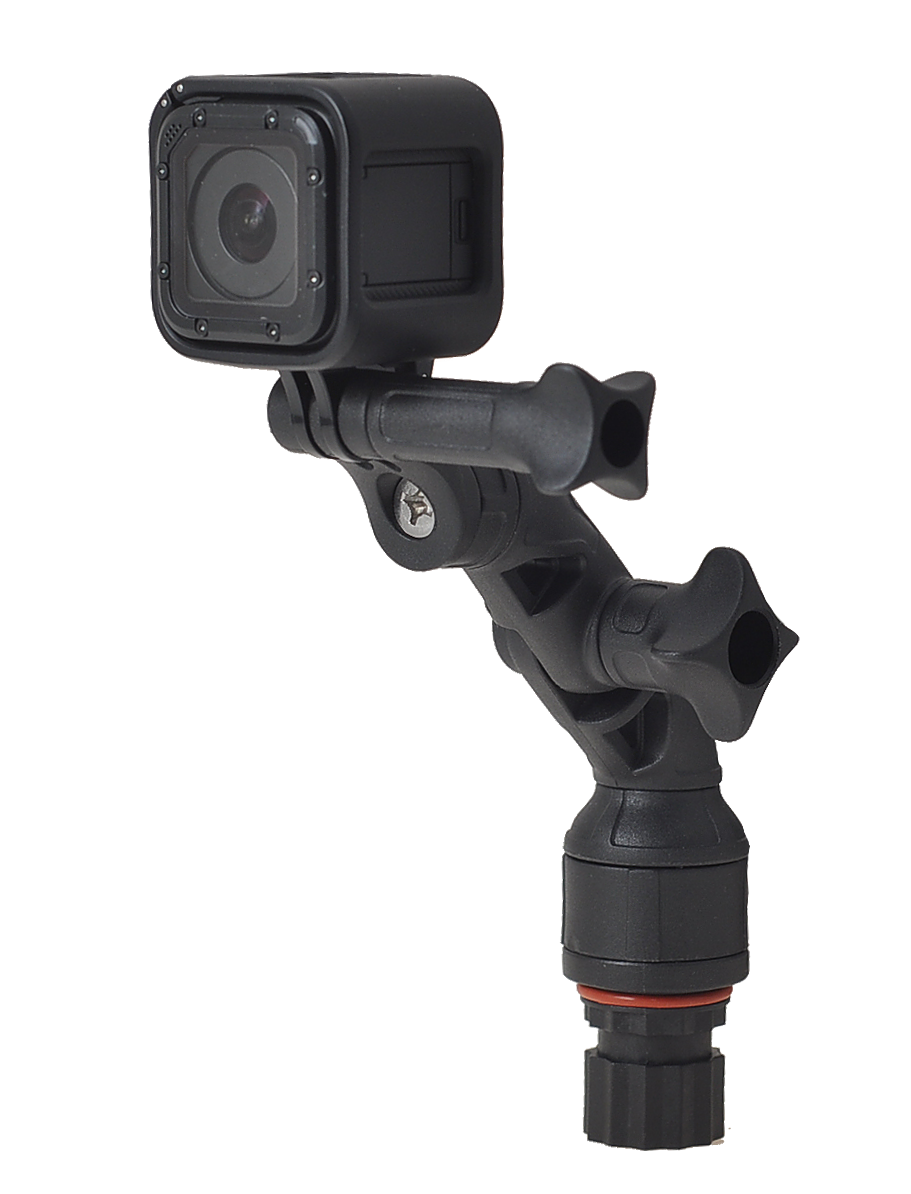

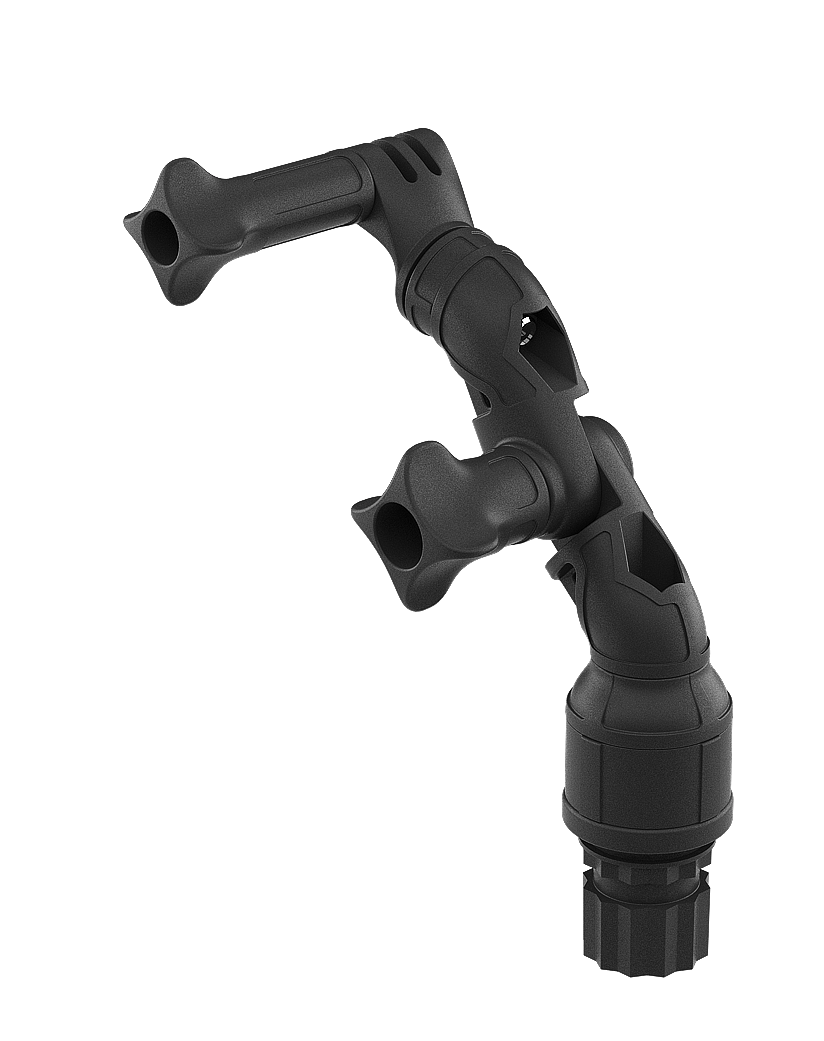

Designed for mounting an action camera on the vessel. The design comprises a bracket with a 1/4” screw thread, a 2-to-3 GoPro mounting connector, the tilt 15° spline joint and a male adapter shaped as a 12 pointed star. The mounted equipment can be rotated in relation to the holder, as well as the whole structure can be 360° rotated in relation to the adapter. The tilt position is fixed with two square knob nuts. The assembly includes fasteners: an M6*60 DIN 912 screw, an M6*25 DIN 931 bolt, an M6*25 DIN 963 screw, an M5*30 DIN 931 bolt, M6 DIN 985, M6 DIN 934 and M5 DIN 934 nuts. The main parts are made of fiberglass-reinforced polyamide, fasteners — of A2 (AISI 304) stainless steel.
