ΒΑΣΗ ΣΤΗΡΙΞΗΣ ΓΙΑ ΡΕΛΙ ΜΟΝΗ BORIKA FASTen FMr125 Ø 22 / 25 mm

Product description:

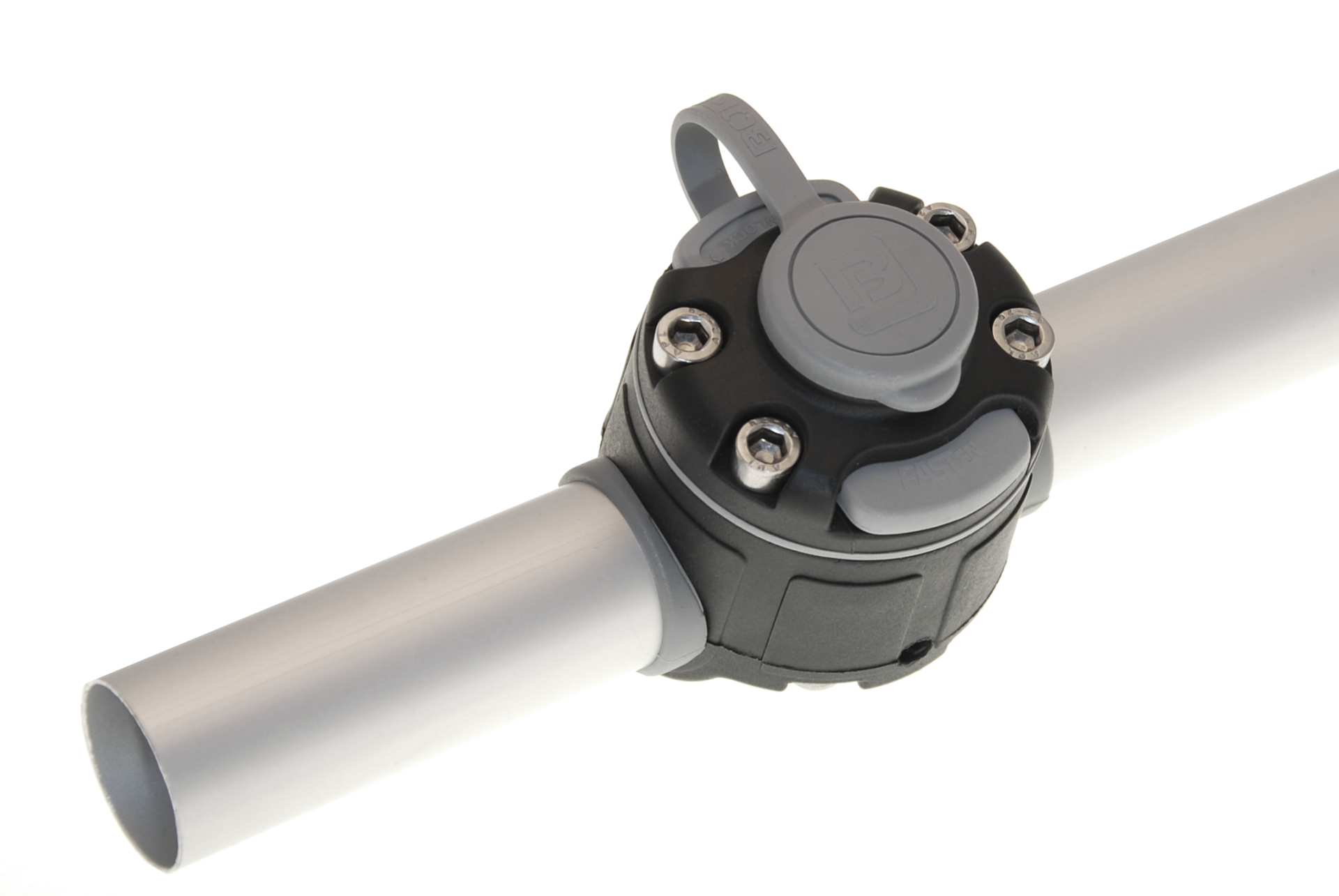

• This mounting kit is designed for quick, easy and secure installation of a wide range of accessories on Ø 22 mm (when using the elastic liner) and 25 mm tubes and rails. Installation does not require tube drilling.

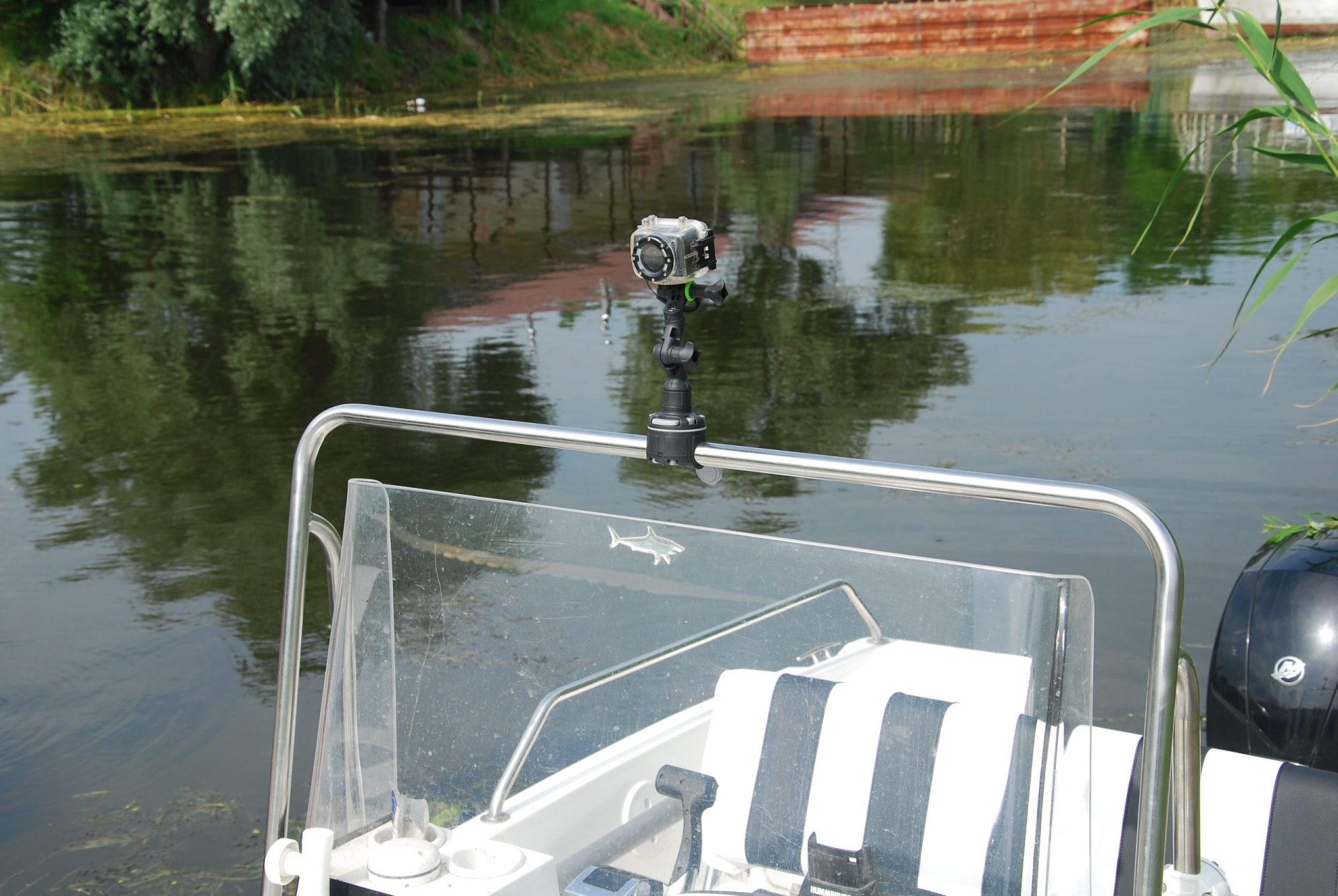

• Is reliable for mounting BORIKA FASTen® accessories: spinning rod holders, monopods, action camera holders, drink holders, pads for fish finder, anchor mounts and much more, as well as accessories and devices from other brands:  SCOTTY®, RAM®, RAILBLAZA®, YakAttack®, carp fishing tackles (by using conversion adapters presented in BORIKA FASTen® product line).
• Also helpful for attaching tubular structures to hard surfaces: for example, the steering rack to the floorboard of a PVC boat or the rail to the transom.

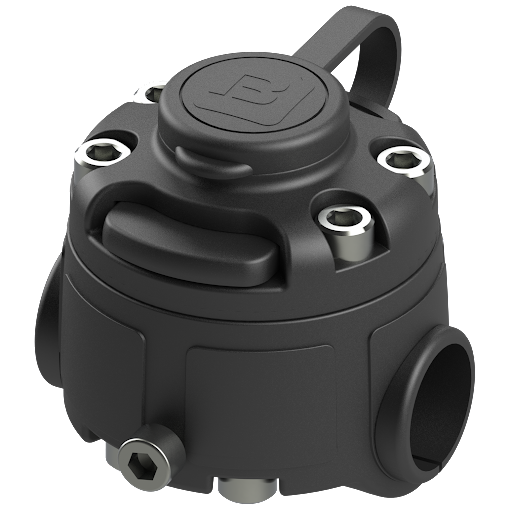

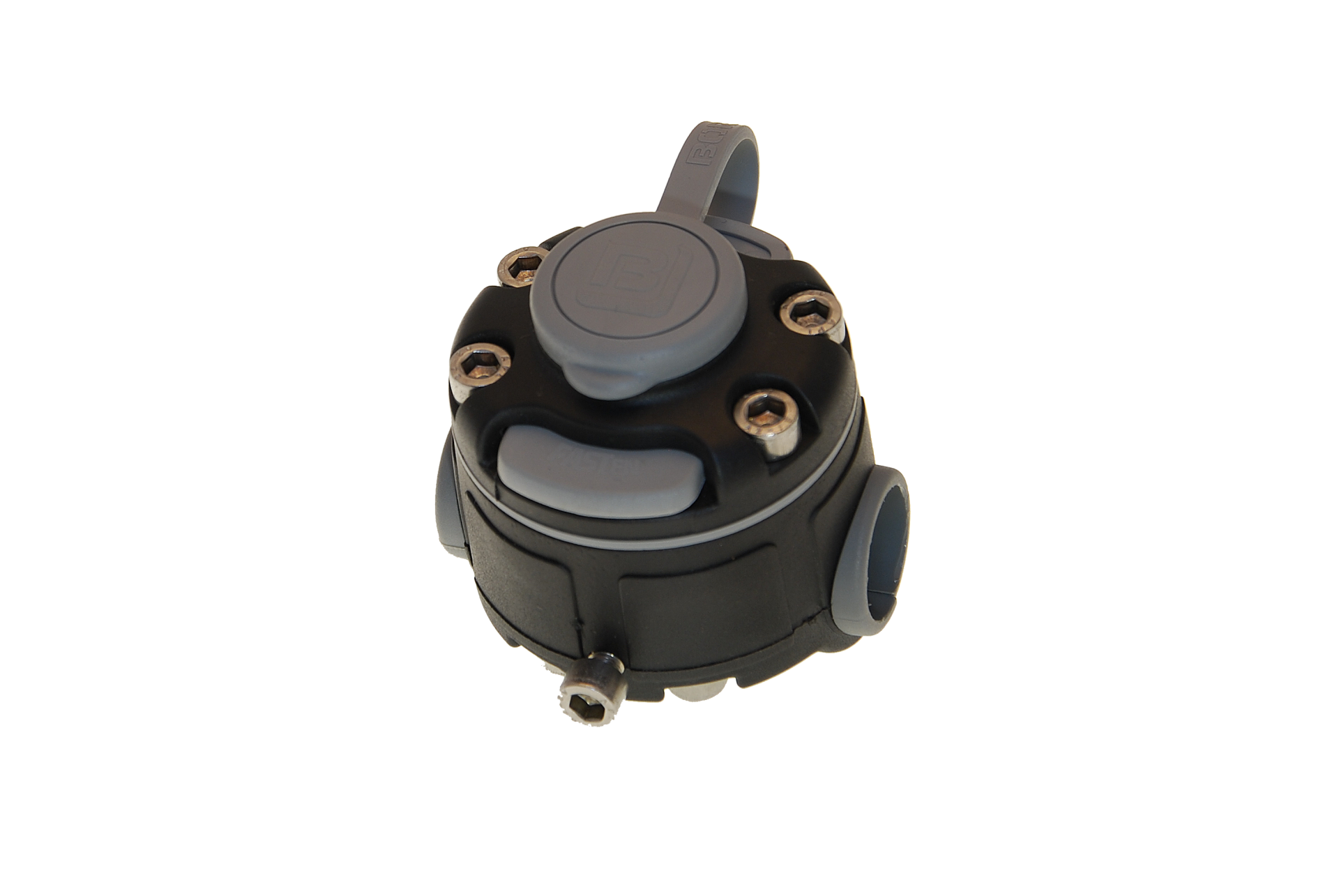

• Includes one Fs219 mount and a mounting pad, which consists of two elements fastened together at four points with four pairs of steel screws and brass nuts. By loosening them, the pad can be easily rotated around the axis and moved along the rail. The mount also has four fastening points to the pad. This provides additional strength under increased loads.
• Fixing is fast and simple: switch the locking mechanism into the UNLOCK position, insert an adapter all the way into the mount, and move the retainer into the LOCK position. You can rotate accessories in 30° increments.

Materials: fiberglass-reinforced polyamide, PVC, A2 (AISI 304) stainless steel, brass.

In the package: an FMr125 mounting system, fasteners (two M6*20 DIN 912 screws and two M6 DIN 934 nuts), a hex wrench, a liner, step-by-step installation guide.

Tips on using & installation:

• Installation should be carried out in accordance with a step-by-step guide, supplied with each kit.
• For immovable fixation use two provided side screws, which prevent sliding and axial rotation of the mounting system.
• The elastic liner allows the system to be installed on tubes with a diameter of 22 mm and provides additional protection against dents on the rail when using the fixing side screws.
• The set also includes a hex wrench, which helps to unscrew the mount from the pad when installing accessories designed for installation under the Fs219 (such as towing rings, D-rings, etc.
• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.

https://www.youtube.com/watch?v=U6dd_2pczDo
