ΠΡΟΕΚΤΑΣΗ ΕΞΑΡΤΗΜΑΤΩΝ BORIKA FASTen EX160

Ex160 – Extender for Accessories (L — 160 mm) with 27,7° Splines

Product description:

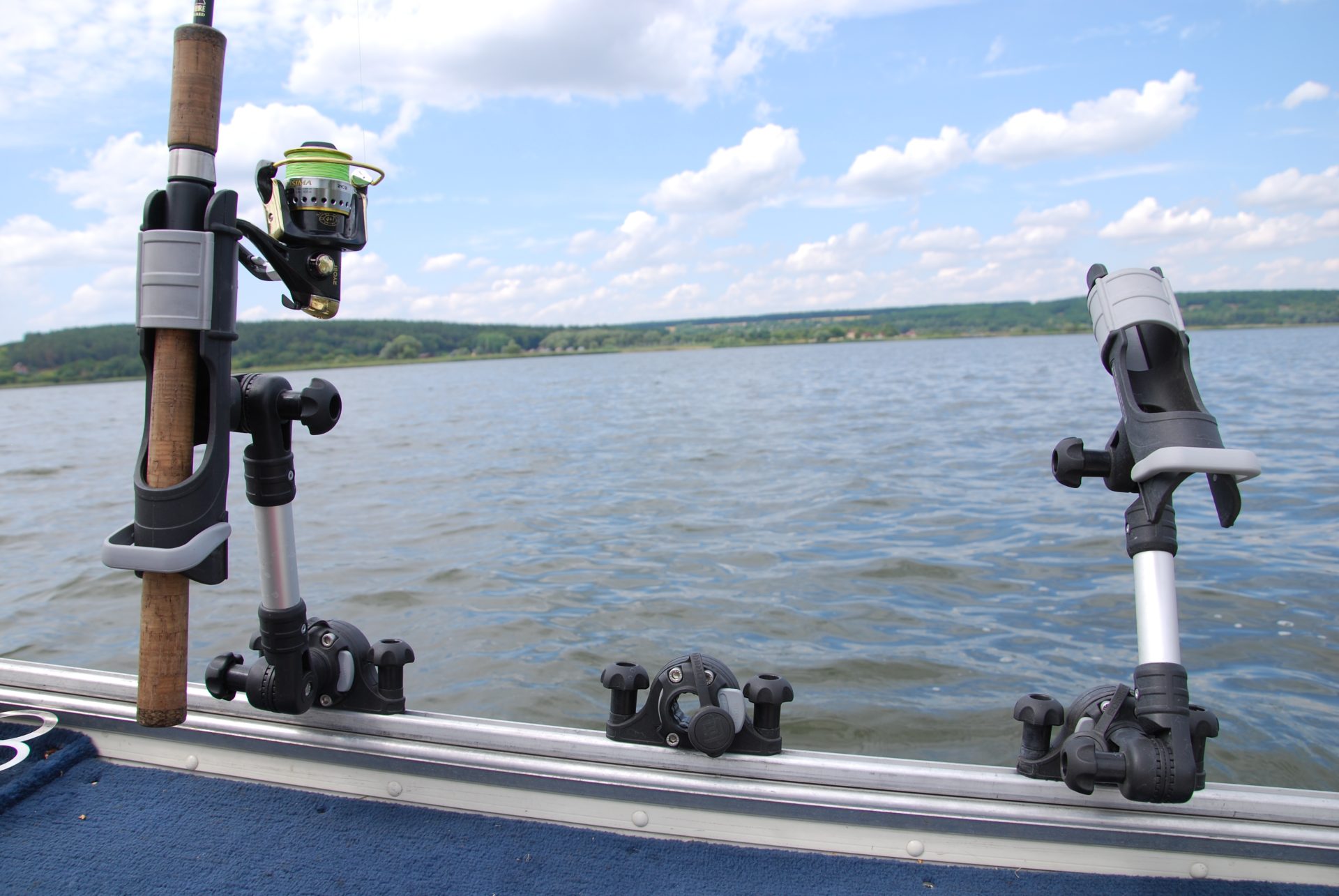

The Ex160 can be used with various BORIKA FASTen® accessories the design of which comprises a tilt joint with 27.7° side splines: an Ht213 spinning rod holder, tilt anchor holders or rollers, fish finder plates, and others.
Adds additional 16 cm to the structure and is relevant for equipping any vessel — an inflatable boat, a belly boat (float tube), a fishing kayak, an aluminium boat, and others.
The design of the extender comprises two connectors with side 27.7° splines, allowing to make assemblies with the same side splines of the accessory.
The tilt joints can be adjusted in 27.7° increments and fixed in the chosen position tightening a hex knob nut.

Materials: fiberglass-reinforced polyamide, powder coated anodized aluminium, A2 (AISI 304) stainless steel, brass.

In the package: an Ex160 extender.

Tips on using & installation:

Installing the extender is simple — you need to dissemble the tilt joint of the accessory, connect the splines of the extender on one edge with the side splines of the accessory itself, and on the other — with the side splines of the adapter of accessory, which allows the entire structure to be fixed in the mount on the vessel. Use knobs, the fasteners, included in the Ex160 package, and the fasteners of the accessory to fix the structure.
Adding Dp230 adjusting washers (they are already included in the package of most BORIKA FASTen® tilt accessories), you can decrease the pitch of the joint to 7.5°.
The 27.7° side splines also allow for adding some transition adapters for installing accessories from other brands.
To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.
