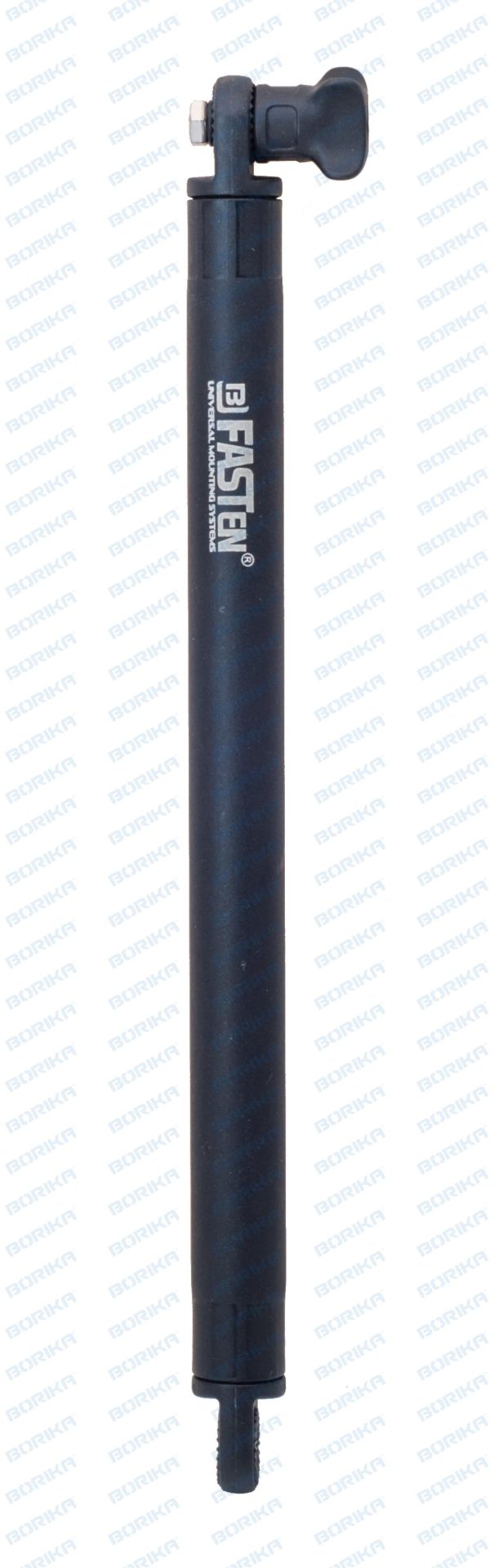

Ex400 – Extender for Accessories (L — 304 mm) with 15° Splines

Product description:

• The Ex400 can be used with some BORIKA FASTen® lightweight accessories the design of which comprises a tilt joint with 15° side splines: a Tp173 TOPEAK waterproof cases holder, an Ng002 holder for action cameras, an Lf003 holder for LONAKO navigation lights, and others.
• Adds additional 30 cm to the structure and is relevant for equipping any vessel — an inflatable boat, a belly boat (float tube), a fishing kayak, an aluminium boat, and others.
• The design of the extender comprises two connectors and adjusting washers with side 15° splines, allowing to make assemblies with the same side splines of the accessory.
• The tilt joints can be adjusted in 15° increments and fixed in the chosen position tightening square knob nuts.

Materials: fiberglass-reinforced polyamide, powder coated anodized aluminium, A2 (AISI 304) stainless steel, brass.

In the package: an Ex400 extender.

Tips on using & installation:

• Installing the extender is simple — you need to dissemble the tilt joint of the accessory, connect the splines of the extender on one edge with the side splines of the accessory itself, and on the other — with the side splines of the adapter of accessory, which allows the entire structure to be fixed in the mount on the vessel. Use knobs, the fasteners, included in the Ex400 package, and the fasteners of the accessory to fix the structure.
• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.

Technical details:

Designed to extend the distance between the accessory with 15° spline tilt joint and the mount in which it is fixed by 305 mm. The design consists of a tube (Ø 22 mm, L — 270 mm) and 2 connectors located along its edges. The assembly also comprises an M6*30 DIN 931 bolt, a square knob with an inserted M6 DIN 934 nut, and 2 washers with 15° splines. The plastic parts are made of fiberglass-reinforced polyamide. The tube is made of powder coated anodized aluminum. Fasteners — of A2 (AISI 304) stainless steel (except for the M6 DIN 934 brass nut).
