Βάση Στήριξης Βυθόμετρου 5″- 9″ Σετ με Κολλητή Βάση για Φουσκωτά Σκάφη SSp223-1 (Ss223 + FMp225)

Product description:

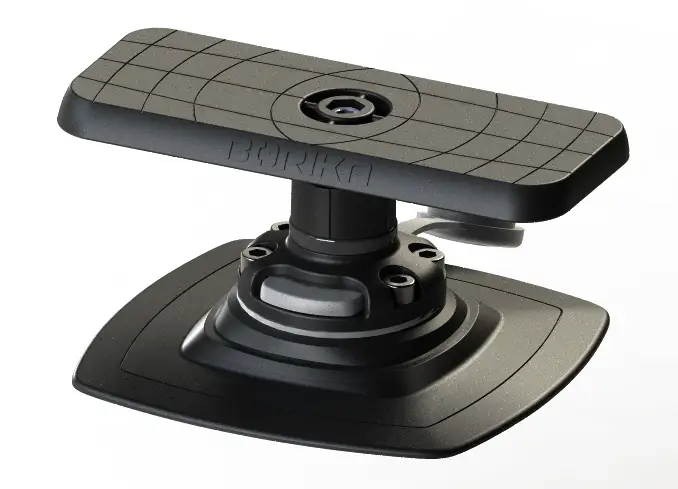

• This kit consists of an Ss223 plate and an FMp225 mounting system, and is suitable for mounting a fish finder monitor on any PVC surface of rowing boats and motorboats, RIBs, belly boats (float tubes) and inflatable kayaks.
• The plate is intended to mount Garmin, Lowrance, Raymarine and Humminbird fish finders with a screen size from 7″ to 9″, maximum distance between mounting points must be up to 150 mm.
• On the back side of the plate, there are marked thickened mounting points that match the standard mounting holes on the popular models of equipment.
• The assembly is designed in a way that allows the plate along with the installed equipment to rotate 360° around the axis of the adapter, which comes in hand during fishing, when you need to quickly change the position of the screen to avoid sun glare.
• The wall of the plate is 3 mm thick, it is made of fiberglass-reinforced polyamide, which ensures its reliability.
• The mounting system includes an Fs219 accessory mount and an increased PVC mounting pad 140 x 140 mm, reinforced with polyamide washer. The mount is fastened to the pad with four screws, which makes the structure strong and reliable.
• The FMp225 mounting system is designed for high loads, and can be used for fixing of spinning rod holders, fish finder plates and transducer arm mounts, action camera monopods, navigation lights, rigging, awnings, trolling stands, etc.
• With conversion adapters, which are presented in the BORIKA FASTen® catalog, you can fix in the mount some accessories and devices from other brands ( SCOTTY®, RAM®, RAILBLAZA®, YakAttack®, carp fishing tackles, etc.).

Materials: fiberglass-reinforced polyamide, PVC, A2 (AISI 304) stainless steel.

In the package: an Ss223 plate, an FMp225 mounting system and a step-by-step installation guide.

Tips on using & installation:

• The mounting system can be glued to the PVC surface in accordance with the step-by-step installation guide.
• To fix the plate in the mount of the system, remove the protective plug, move the retainer to the open position, insert an adapter all the way into the mount, and move the retainer into the LOCK position. After fishing, the plate with the attached equipment can be easily detached from the mount and the mounting system can be used for fixing any other BORIKA FASTen® accessories.
• The base of the fish finder monitor can be fastened to the plate using self-tapping screws in accordance with the step-by-step installation guide. You can use marks to drill holes or make your own holes which will suit your equipment.
• The design can be supplemented with FEx220 and FEx250 extended mounts, and also an FAv210 mount with a tilt adapter. After fishing, the structure can be easily removed from the mount without dismantling the equipment.

• To get a possibility of fixing accessories with paired adapters (trolling stands, round rails, tables, ladders), install FMp225 systems with a distance between the centers of the mounts, a multiple of 305 mm (305 mm, 610 mm, etc.).

• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.
