Βάση Στήριξης Βυθόμετρου+Αισθητήρα+Κύρια Βάση Κολλητή FASTen FTs450

Product description:

• This set offers a complete solution for mounting a fish finder and a transducer on the side of an inflatable boat. The design comprises a plate for a small fish finder monitor (up to 7″) and an arm mount, suitable for most popular transducers of Lowrance, Raymarine, Garmin, Humminbird and other brands.
• The user can adjust the system to the width of the boat side, moving the clamp, which connects the plate and the arm.
• The wall of the plate is 3 mm thick, it is made of fiberglass-reinforced polyamide, which ensures its reliability. On the back side of the plate, there are marked thickened mounting points that match the standard mounting holes on the popular models of equipment.
• The assembly is designed in a way that allows the plate along with the installed equipment to be fully rotated around the axis of the adapter, which comes in hand during fishing, when you need to quickly change the position of the screen to avoid sun glare.
• The transducer holder has a two-stage telescopic design, the maximum distance between the transducer and the place of its installation on the boat is about 50 cm and the minimum distance is about 30 cm.
• The joint between the tubes is fitted with a locking system that automatically activates when the holder is unfolded. To fold it down — just press the button on the tube joint.
• The arm mount is equipped with the covering fastening system that is suitable for most popular transducers. Two swivel brackets and the set of radius washers allow the coverage to be adjusted, and additional rigid “fins” of this system help to protect the transducer from mechanical damage.
• The FMp224 includes an Fs219 accessory mount and a PVC mounting pad 110 x 110 mm, reinforced with polyamide washer, which is intended to be glued to the surface of the cylinder. The mount is fastened to the pad with four screws, which makes the structure strong and reliable.
• The mount included in the assembly is compatible with all BORIKA FASTen® accessories and with conversion adapters you can fix in it some accessories and devices from other brands ( SCOTTY®, RAM®, RAILBLAZA®, YakAttack®, carp fishing tackles, etc.).
• Fixation of the accessory is fast and simple: switch the locking mechanism into the UNLOCK position, insert an adapter all the way into the mount, and move the retainer into the LOCK position. You can rotate accessories in 30° increments.

Materials: fiberglass-reinforced polyamide, anodized aluminium, PVC, polyurethane, A2 (AISI 304) stainless steel, brass.

In the package: an Ft450 set, an FMp224 mounting system, a step-by-step installation guide.

Tips on using & installation:

• The base of the fish finder monitor can be fastened to the plate using self-tapping screws in accordance with the step-by-step installation guide. You can use marks to drill holes or make your own holes which will suit your equipment.
• The transducer’s tubes fold up compactly during transportation.
• The mounting kit is securely glued to the surface of the PVC cylinder with two-component polyurethane adhesive according to the step-by-step instructions and can be used for its intended purpose the day after installation.

• To fix accessories with paired adapters (trolling stands, round rails, tables, ladders), install FMp224 systems with a distance between the centers of the mounts, a multiple of 305 mm (305 mm, 610 mm, etc.).

• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.

Technical Details:

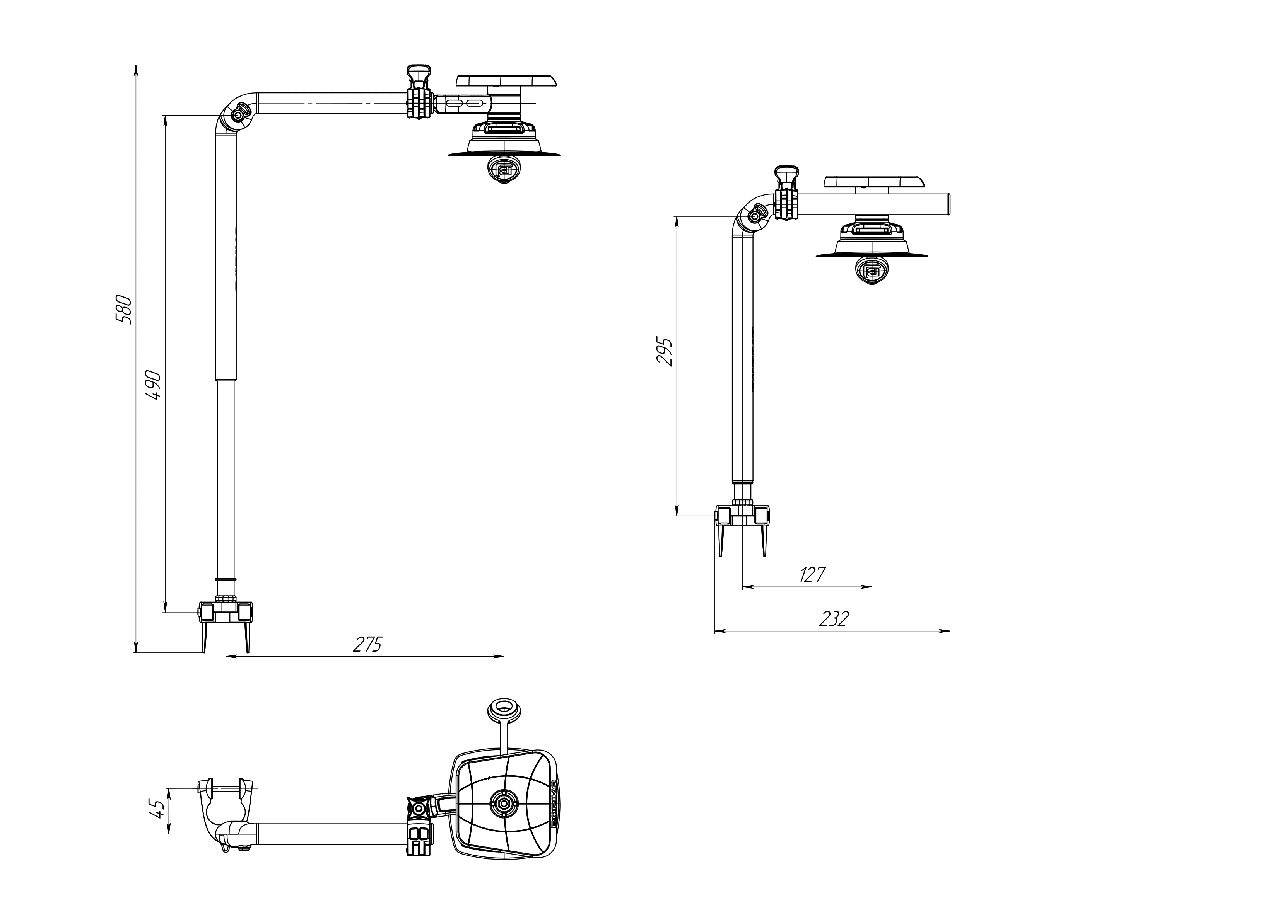

The kit has been designed for installation of fish finder monitor and transducer on the PVC boats. The design comprises the Ft450 set for mounting of the fish finder and the transducer, and the Fp224 mounting system. The assembly includes the plate for fish finder and the telescopic holder for mounting the sonar at a depth from 295 to 490 mm. The swivel plate 106 х 98 mm has a male adapter shaped as a 12 pointed star, compatible with mounting systems and connected to the arm. The transducer’s design consists of the telescopic tubes (Ø 20,4 mm, L — 170 mm; Ø 20,4 mm L — 240 mm; Ø 16,2 mm, L — 220 mm) and covering transducer fastening, that comprises two swivel brackets and radius washers. The assembly includes the fasteners: DIN 912 screws (M6*30, M6*60, M5*50 and M5*40), four M6*20 DIN 912 screws, M6 and M5 DIN 985 nuts. The main parts are made of fiberglass-reinforced polyamide. The tube — of anodized aluminium with powder coating. The fasteners — of А2 (AISI 304) stainless steel.
