Ρολ Μπαρ / Σταντ Στήριξης FASTen STp050 0,80m x 0,50m

Support stand for kayaks STp050

Διάμετρος σωλήνα  Ø 32 mm

Έχει δυο ενσωματωμένες κύριες βάσης FMr132

Εύκολη τοποθέτηση – αφαίρεση

Αναδιπλούμενη (δεν πιάνει χώρο)

Product description:

• Is designed to fix accessories at the height of up to 80 сm and also serves as a support for holding the balance in a standing position. It also can be used as a frame for an awning.

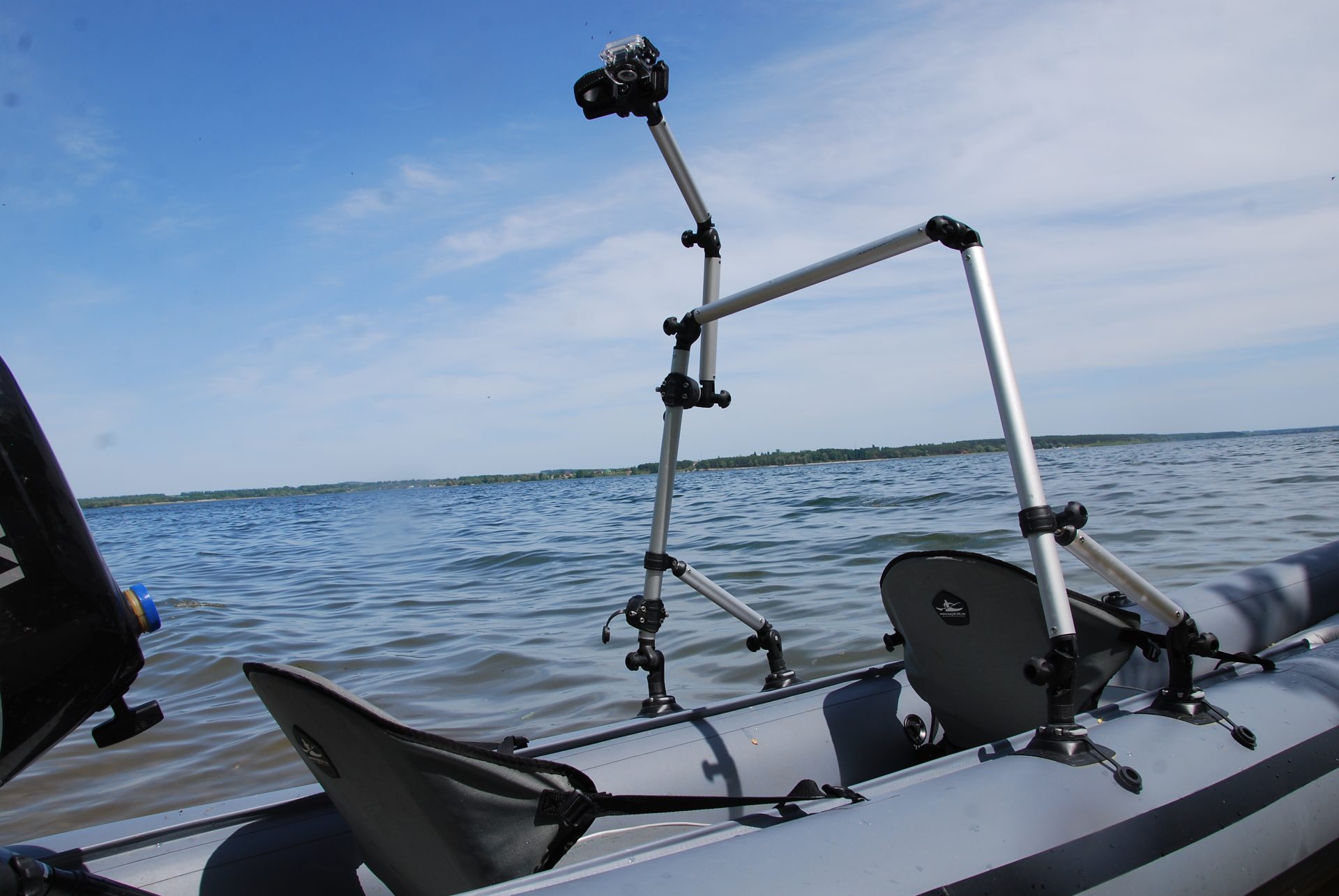

• The stand width is 50 сm — ideal for mounting on fishing kayaks. Has four attachment points to the vessel. The design of the adapters by which it can be fixed in the mounts on the vessel comprise U-joints that allows for adjusting the width of attachment and the tilt angle of the support stand.
• Two FMr132 mounting systems are installed on the stand’s side. They allow fixing any BORIKA FASTen® accessories, and using conversion adapters developed by BORIKA® designers, you can also install accessories and devices from other brands —  SCOTTY®, RAM®, RAILBLAZA®, YakAttack®, and carp fishing tackles.
• Loosening the screws, by which two parts of the mounting pad are fastened together, you get the possibility to move the mounts along the rail and rotate them around its axis, allowing flexible adjustment of the position of the attached accessories. When you tighten the side fixing screws you can also immovably fix the mount.
• Fixing is simple: just move the mount retainer to the UNLOCK position, insert the accessory adapter all the way in and move the retainer to the LOCK position.

Materials: fiberglass-reinforced polyamide, anodized aluminium, A2 (AISI 304) stainless steel, brass.

In the package: an STp050 support stand, a hex wrench and two FMr132

Tips on using & installation:

• For installation of the stand on the vessel four mounting systems designed for increased loads are required (two on each side of the board).

• You can install on the rail a few extra FMr132 mounting systems (with one mount) and FMr232 (with two mounts). This expands the possibilities of mounting accessories on the kayak.
• For unscrewing Fs219 mounts and fastening under them gaskets with holes for hanging MOLLE pouches the hex wrench is provided in the package.
• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.

Technical Details:

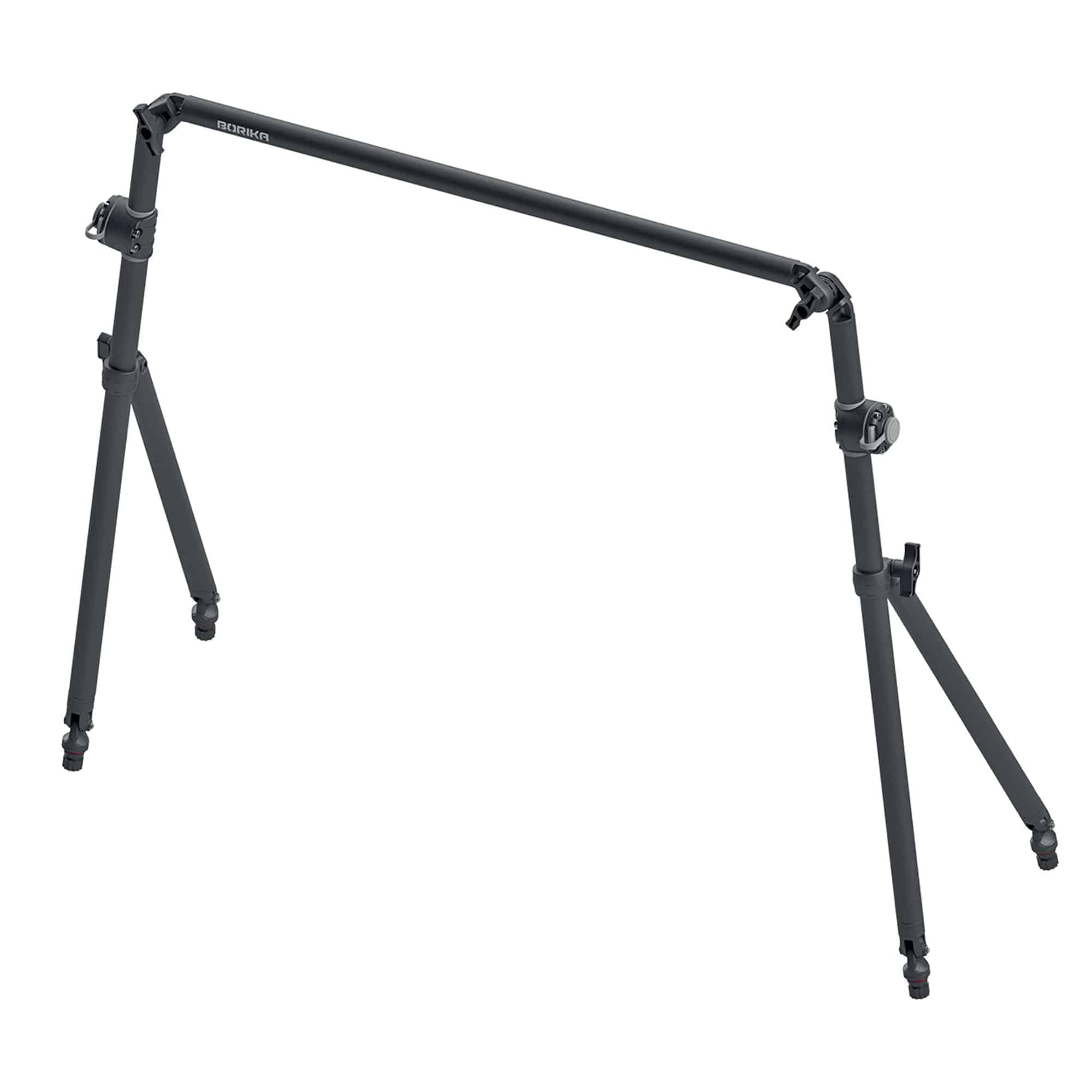

Designed for fixing accessories provided with male adapters shaped as a 12 pointed star and for support while standing on the kayak. The structure consists of a frame (800 mm height, 500 mm width), which is formed of tube fragments of Ø 32 mm, connected by tilt joints with Dp230 7.5° splines adapter washers and two additional supports made of Ø 32 mm tube, attached to the frame by two collars with movable swivel joints. This support stand is equipped with four male adapters for fixing on the vessel. Each of the adapters comprises a cardan-joint. The assembly of this stand includes four M6*50 DIN 931 screws and four dihedral knobs with M6 DIN 934 inserted nuts. On the sides of the stand are fixed two FMr132 systems (each assembly includes four M6*30 DIN 912 screws, eight M6 DIN 934 nuts, six M6*20 DIN 912 screws, two M6 DIN 985 nuts). For convenient installation, a hex wrench with a safety leash is included in the package. The tube is made of anodized aluminum, the main parts are made of fiberglass-reinforced polyamide. Fasteners — of A2 (AISI 304) stainless steel (except for four M6 DIN 934 brass nuts).
