ΕΞΑΡΤΗΜΑ ΤΕΝΤΑΣ – ΡΟΛ ΜΠΑΡ BORIKA FASTen TFp254 ΓΙΑ Ø 22 mm ΚΑΙ 32 mm

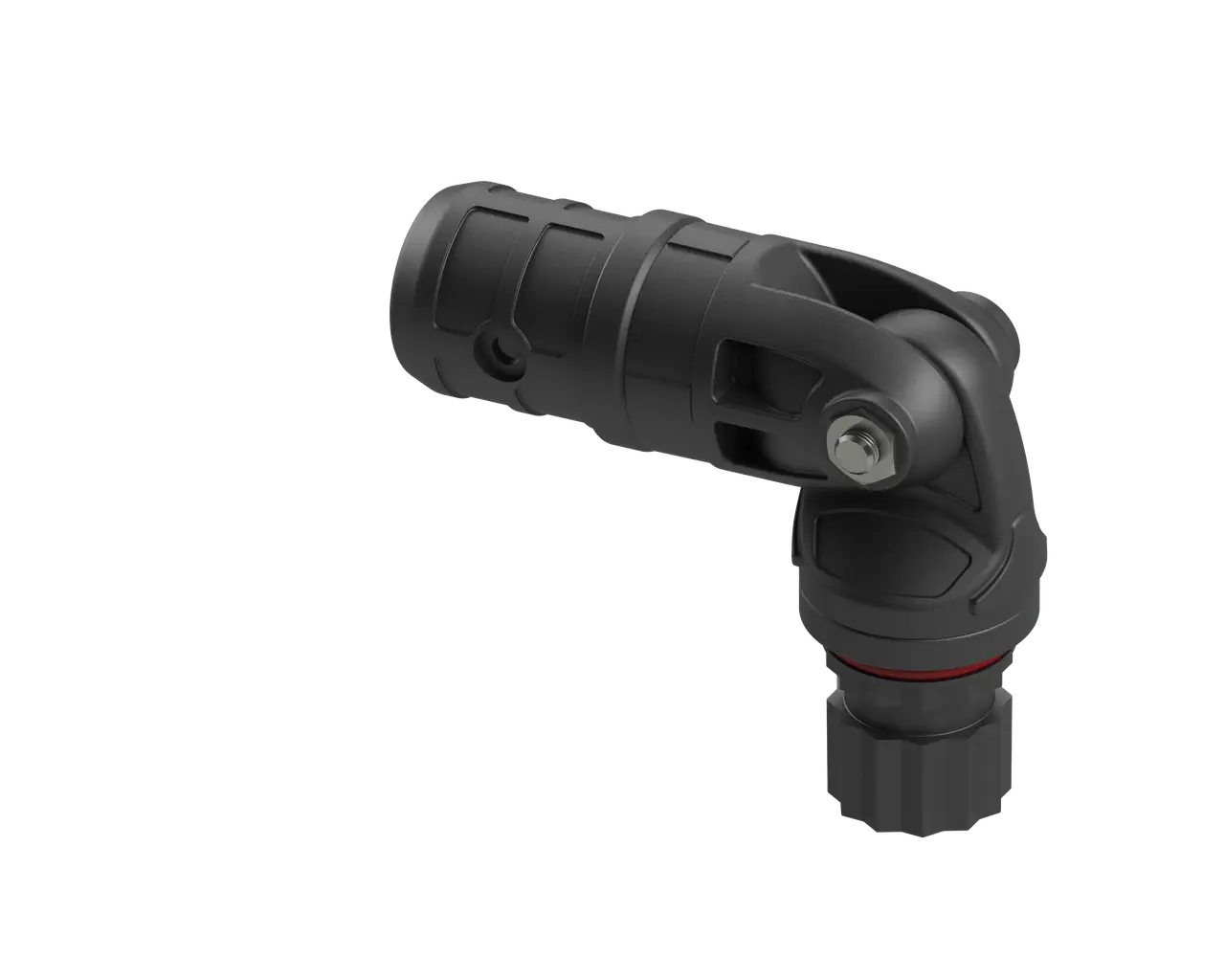

Awning Cardan Joint for Installation of Ø 22 mm and 32 mm Tube Constructions BORIKA  FASTen TFp254

Technical Details:

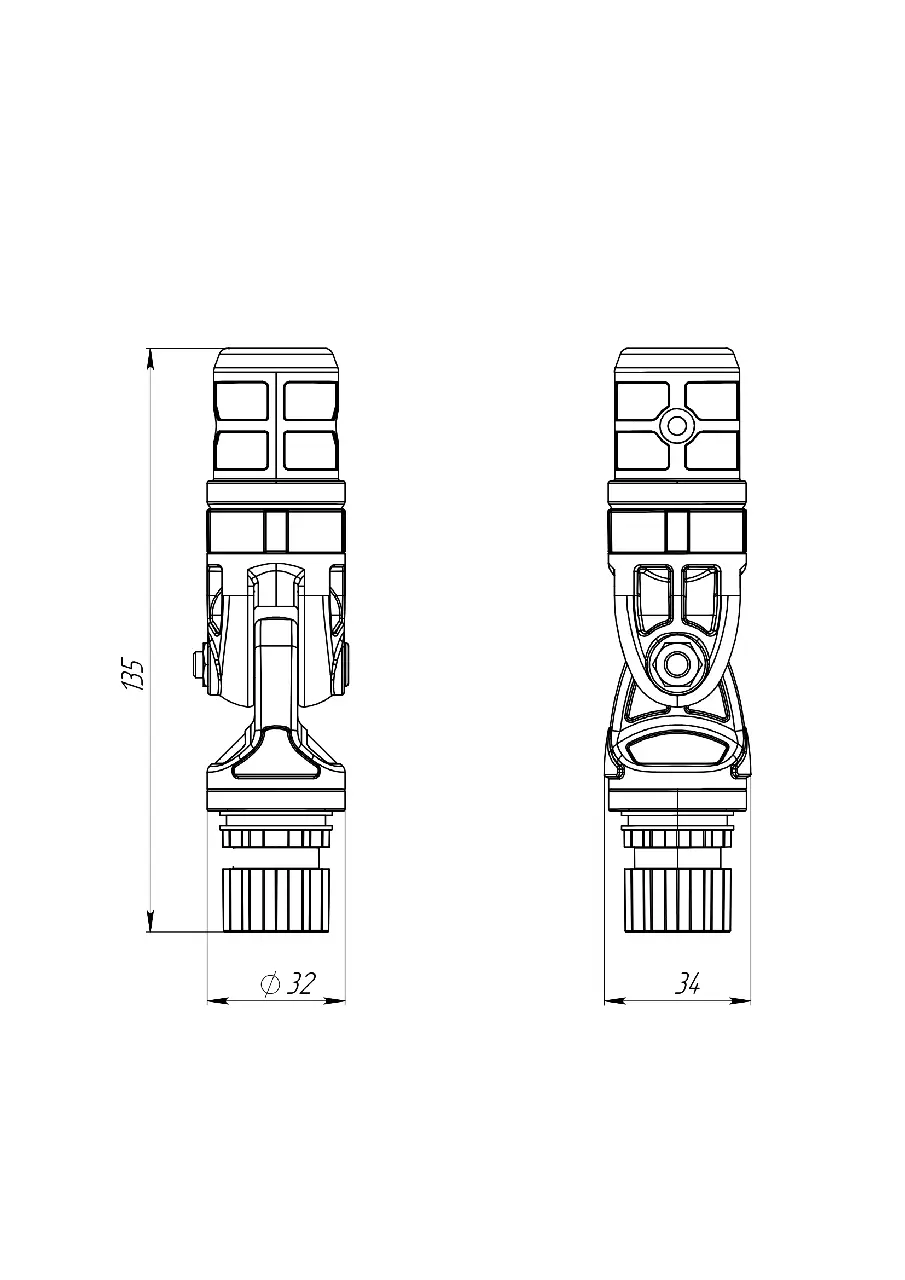

It is intended for installation on a vessel of awning tubular structures with an inner tube diameter of 32 mm or an outer diameter of 22 mm. The design consists of a tube joint, fastened to a male adapter shaped as a 12 pointed star by a U-joint. The assembly includes fasteners: two M6 DIN 125 washers, two self-locking M6 DIN 985 nuts, an M6 DIN 934 nut, an M6*25 DIN 912 screw. The adapter is equipped with an O-ring. The main parts (including the U-joint axle) are made of fiberglass-reinforced polyamide. Fasteners — of A2 (AISI 304) stainless steel.

Product description: —

Materials: fiberglass-reinforced polyamide, A2 (AISI 304) stainless steel.

In the package: a TFp254 awning joint.
