Βάση Στήριξης Βυθόμετρου 5″- 9″ Σετ με Βιδωτή Bάση SSb223 (FASTen Ss223 + FMb)

Product description:

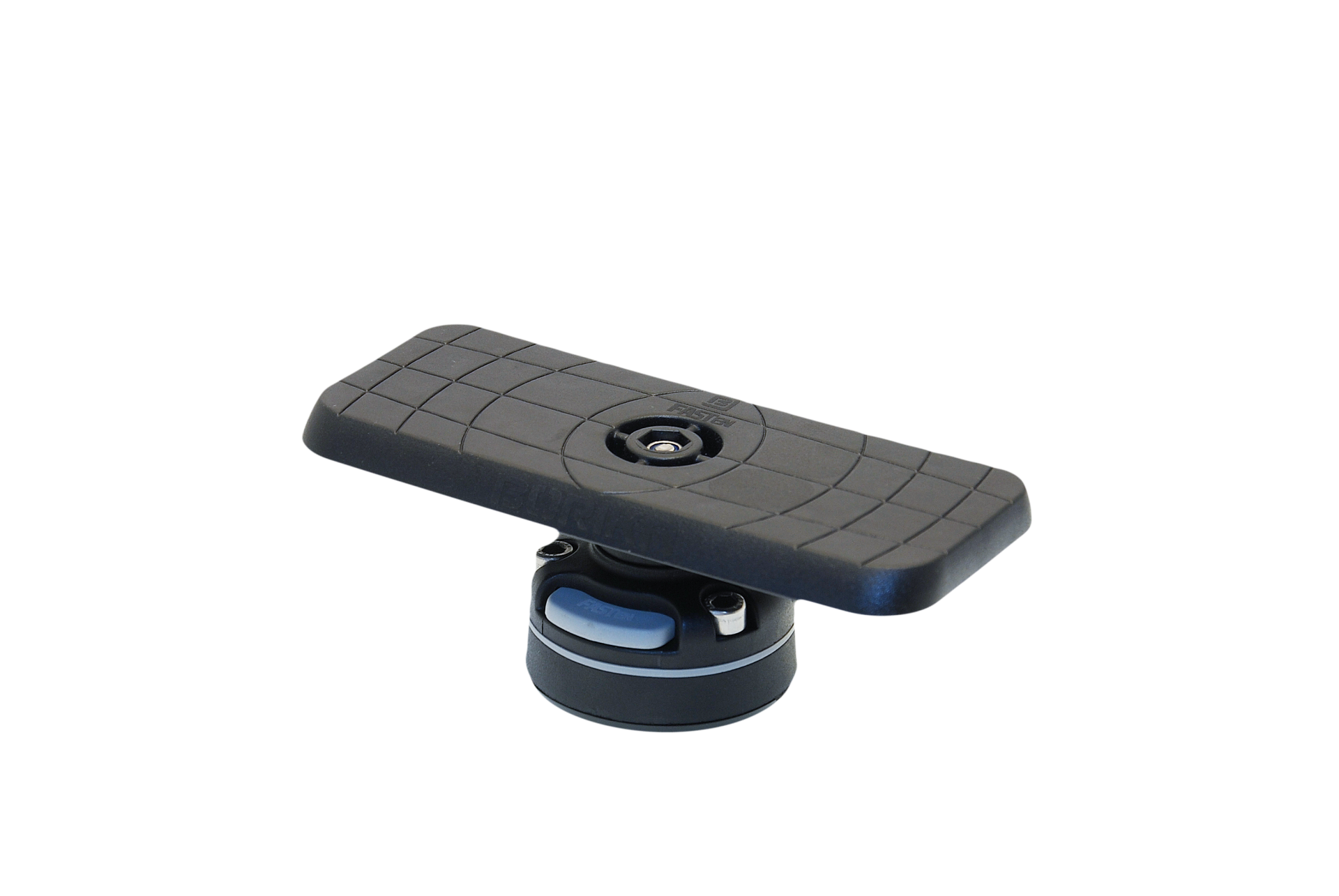

• This mounting kit contains everything you need to mount a fish finder on the hard surfaces of fishing kayaks, aluminium boats and other hardboard vessels. It consists of an Ss223 plate and an FMb mounting system.
• Such a plate is intended to mount Garmin, Lowrance, Raymarine and Humminbird fish finders with a screen size from 7 up to 9″ , maximum distance between mounting points must be up to 150 mm.
• On the back side of the plate, there are marked thickened mounting points that match the standard mounting holes on the popular models of equipment.
• The assembly is designed in a way that allows the plate along with the installed equipment to be fully rotated around the axis of the adapter, which comes in hand during fishing, when you need to quickly change the position of the screen to avoid sun glare.
• The wall of the plate is 3 mm thick, it is made of fiberglass-reinforced polyamide, which ensures its reliability.
• The FMb system includes the Fs219 mount and a round pad, which match the mount in diameter. The advantage of this system is four mounting points, which makes it reliable at medium and high loads.
• You can use this mounting system for fixing any accessories from the BORIKA FASTen® range, and with conversion adapters, which are presented in the BORIKA FASTen® catalog, you also can fix in FMb some accessories and devices from other brands ( SCOTTY®, RAM®, RAILBLAZA®, YakAttack®, carp fishing tackles, etc.).
• Fixation in the mount is fast and simple: switch the locking mechanism into the UNLOCK position, insert an adapter all the way into the mount, and move the retainer into the LOCK position.

Materials: fiberglass-reinforced polyamide, PVC, A2 (AISI 304) stainless steel.

In the package: an Ss223 plate, an FMb mounting system, fasteners (4 6,3*32 DIN 9200 self-tapping screws), step-by-step installation guide, a hex wrench.

Tips on using & installation:

• The mounting system can be attached on 5+ mm thickness polyethylene surfaces, as far as 5+ mm wooden, 3+ mm aluminum and 4.5+ mm fiberglass surfaces. Installation is easy to do using the included step-by-step guide.

• For ease of installation, the package includes a hex wrench, suitable for the fasteners provided in it.

• Pay attention that the reliability of the mounting system depends not only on the mount and pad, but also on the strength of the mounting surface. For example, this should be taken into account when installing the system on polyethylene boats.
• The base of the fish finder monitor can be fastened to the plate using self-tapping screws in accordance with the step-by-step installation guide. You can use marks to drill holes or make your own holes which will suit your equipment.
• The design can be supplemented with FEx220 and FEx250 extended mounts, as well as a FAv210 mount with a tilt adapter. After fishing, the structure can be easily removed from the mount without dismantling the equipment.
• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.
