ΣΚΑΛΑ ΣΚΑΦΟΥΣ ΠΤΥΣΣΟΜΕΝΗ BORIKA FASTen FLp032

Πτυσσόμενη σκάλα (L — 1000 mm) με το κιτ για εγκατάσταση σε φουσκωτό σκάφος (Fl032 + FMp225)

Folding Ladder (L — 1000 mm) with the Kit for Installation on the Board of PVC / Neoprene Boat (Fl032 + FMp225)

Product description:

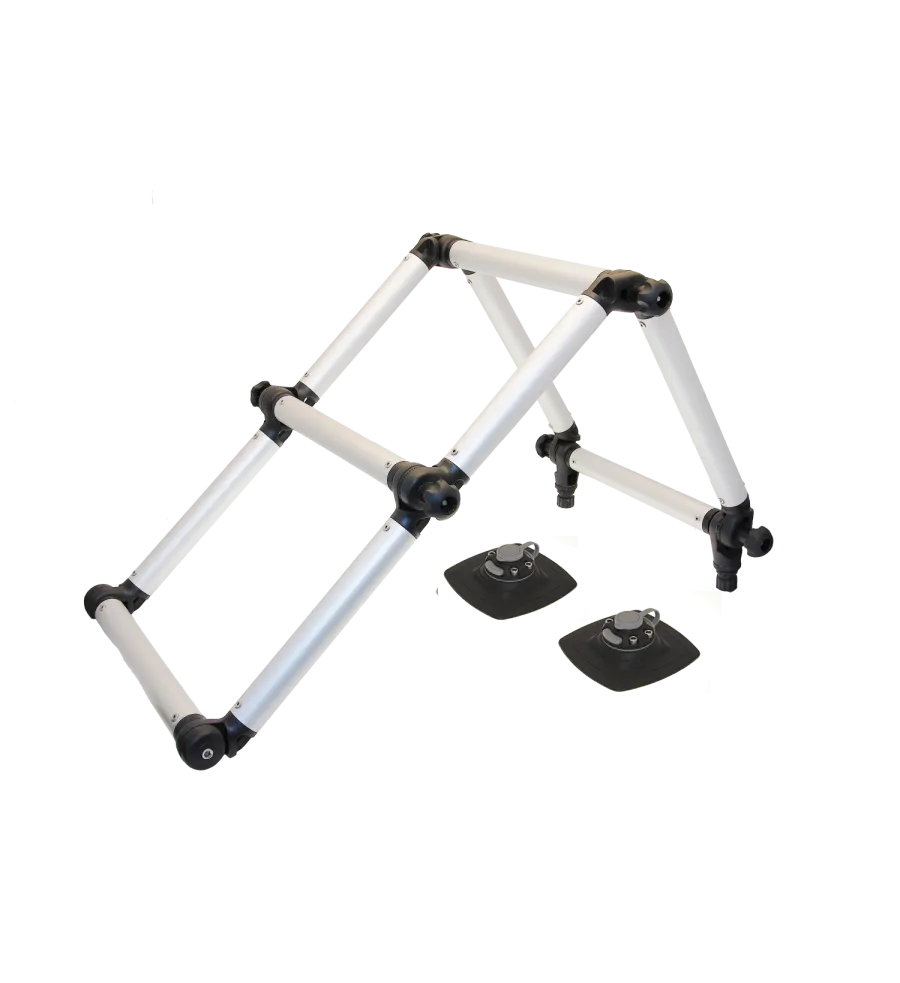

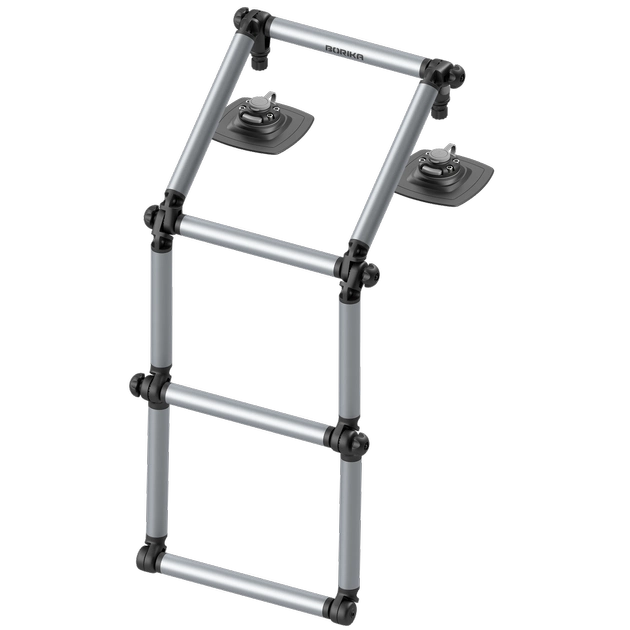

• The mounting kit includes everything you need to install a ladder on a board of your PVC inflatable: the Fl032 ladder, two FMp225 mounting systems, fasteners and step-by-step instructions.

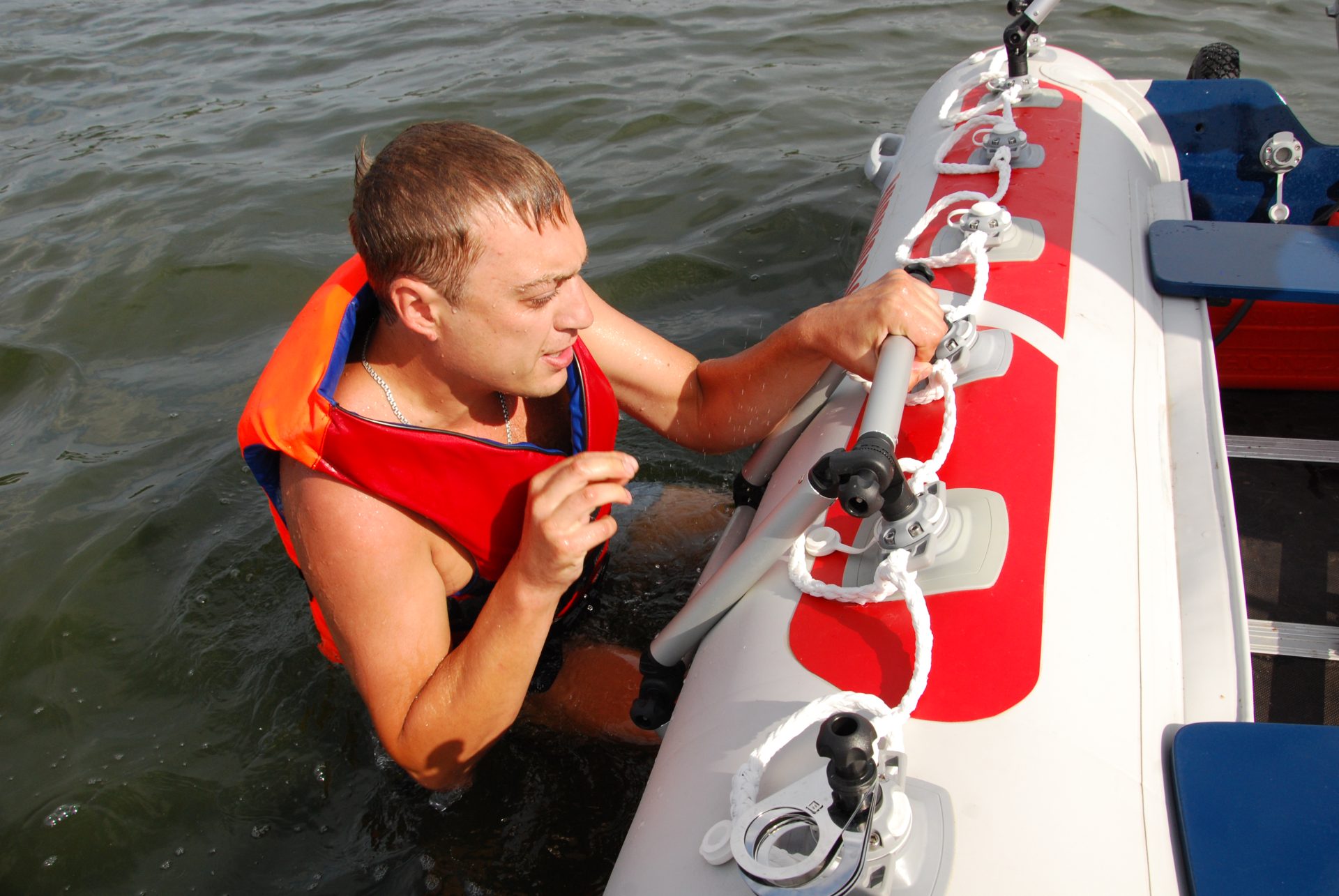

• The onboard Fl032 folding ladder is a top accessory for divers, underwater hunters and those who like to swim in open waters. It provides comfortable and safe diving and getting out from the water and can be installed aboard on an inflatable boat or RIB. The structure can withstand loads up to 140 kg.

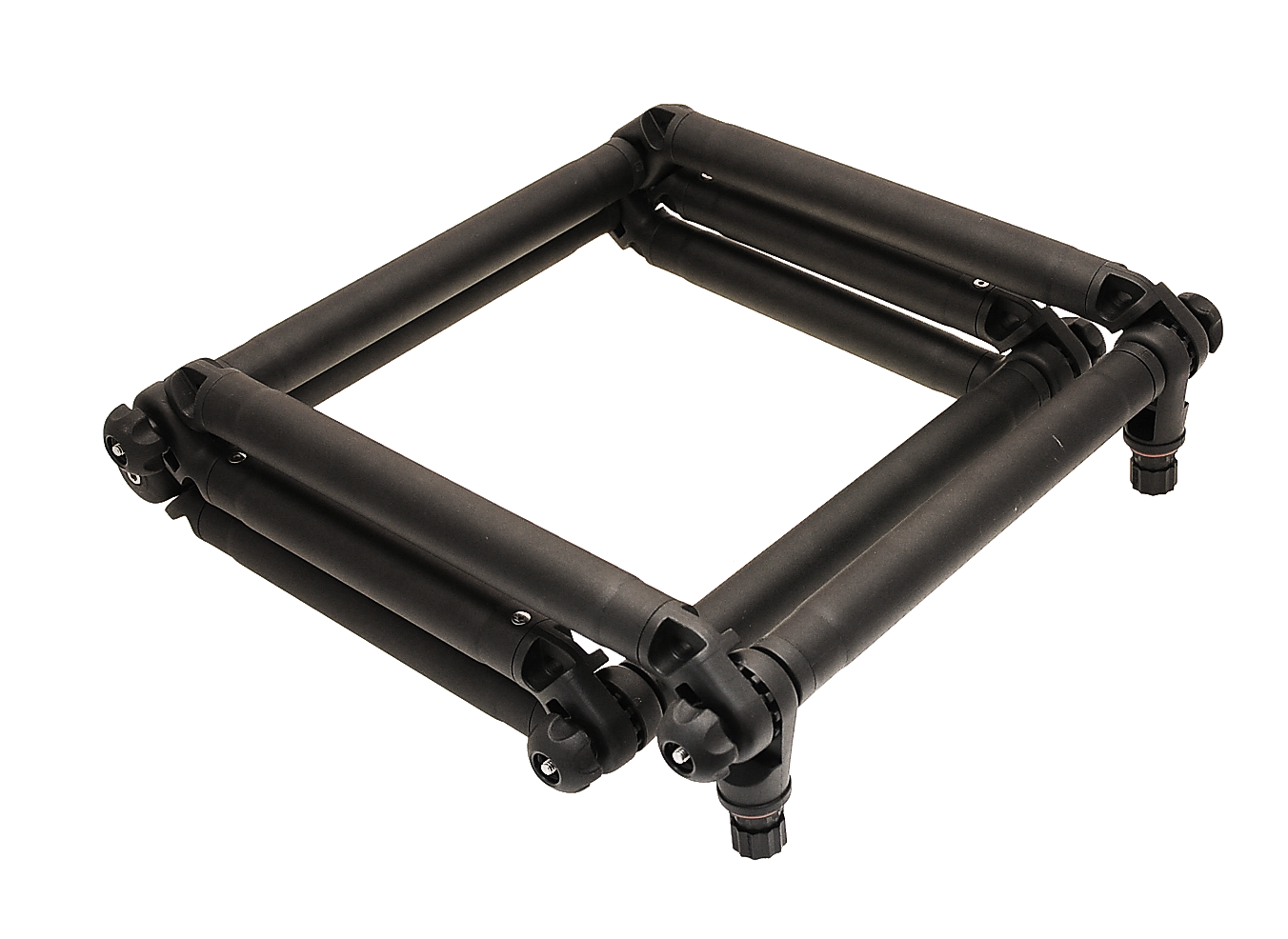

• Thanks to the spline joints the individual configuration of the ladder can be adjusted, maximally repeating the shape of the cylinder. The ladder also can be compactly folded for transportation and storage.
• Dimensions in the folded position — 36 x 32 x 13,5 cm. The maximum length is 1 m.
• The FMp225 is a universal mounting system, which comprises an Fs219 accessory mount and a polyamide mounting pad 140 x 140 mm, covered with PVC, which is intended to be glued to the surface of the cylinder. The mount is fastened to the pad with four screws, which makes the structure strong and reliable.
• With conversion adapters, which are presented in the BORIKA FASTen® catalog, you can fix in the mount some accessories and devices from other brands ( SCOTTY®, RAM®, RAILBLAZA®, YakAttack®, carp fishing tackles, etc.).

Materials: fiberglass-reinforced polyamide, PVC, A2 (AISI 304) stainless steel, brass.

In the package: an Fl032 ladder, an FMp225 mounting system,a step-by-step installation guide.

Tips on using & installation:

• The ladder can be complemented with The BORIKA FASTen® El032 extender, which is an additional section that consists of two steps and adds the structure 55 cm.
• For fixing of the ladder on board, install two mounting systems with a distance between the centers of the mounts of 305 mm, move the locking mechanisms of the mounts to the UNLOCK position, insert the ladder adapters in them all the way in and move the retainers to the LOCK position.
• To prevent the boat from overturning, the ladder should be installed in the stern or bow of the boat or RIB. It is also important to consider the counterweight and not overload the board from which the diving and getting out from the water will be carried out. For example, when you place both the engine and the ladder at the stern of the boat, ensure that there is sufficient counterweight in the bow of it.

• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.
