Προέκταση Πτυσσόμενη για αξεσουάρ FASTen Ex610 (L — 610 mm) με σφήνες 27,7°

Ex610 – Folding Extender for Accessories (L — 610 mm) with 27,7° Splines



Technical details:

Designed to extend the distance between the accessory and the mount in which it is fixed by 610 mm. The design consists of 2 tubes Ø 32 mm, L — 234 mm, a tilt joint, which comprises a pair of Dp230 washers with 7.5° splines, an M6*50 DIN 931 bolt, and a hax knob with an inserted M6 DIN 934 nut, 2 connectors with side 27.7° splines located along its edges, a spring, an M6*50 DIN 931 bolt and another hex knob with an inserted M6 DIN 934 nut. The plastic details are made of fiberglass-reinforced polyamide. The tube is made of powder coated anodized aluminum. Fasteners — of A2 (AISI 304) stainless steel (except for two M6 DIN 934 brass nuts).



Product description:

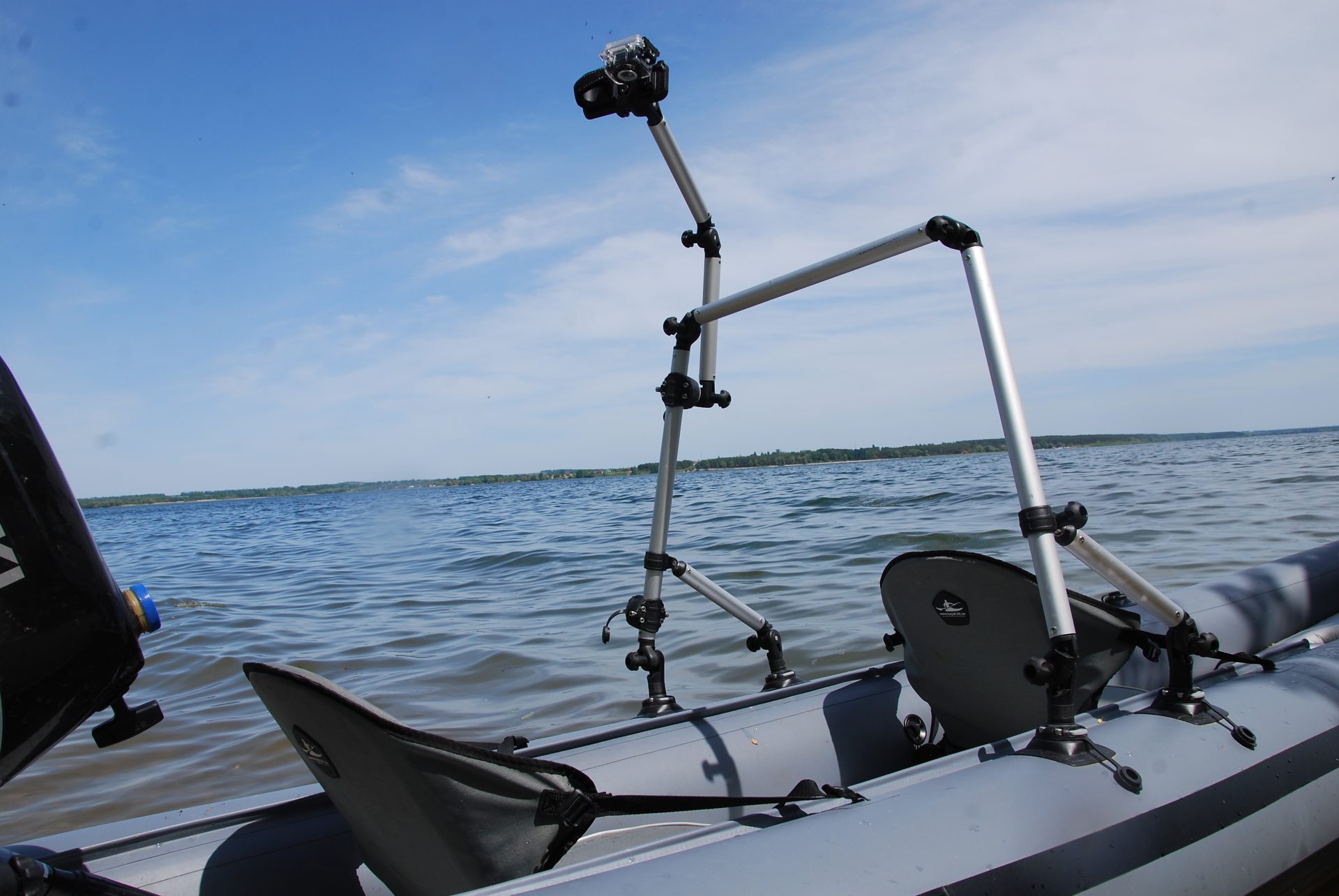

• The Ex610 can be used with some BORIKA FASTen® accessories the design of which comprises a tilt joint with 27.7° side splines, it also allows for assembling tubular structures on the vessel (for example, a round rail).

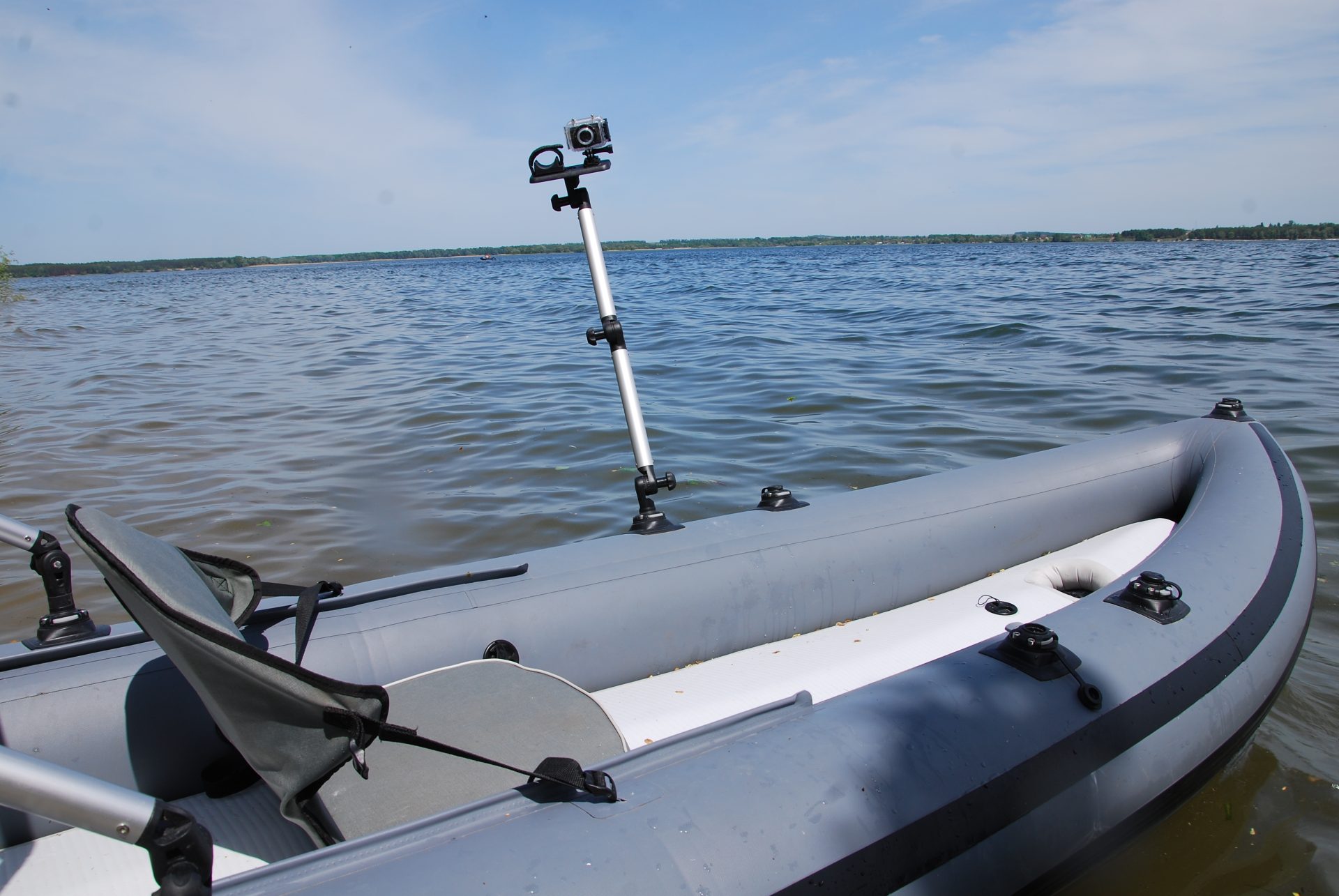

• Adds additional 61 cm to the structure and is relevant for equipping any vessel — an inflatable boat, a belly boat (float tube), a fishing kayak, an aluminium boat, and others.

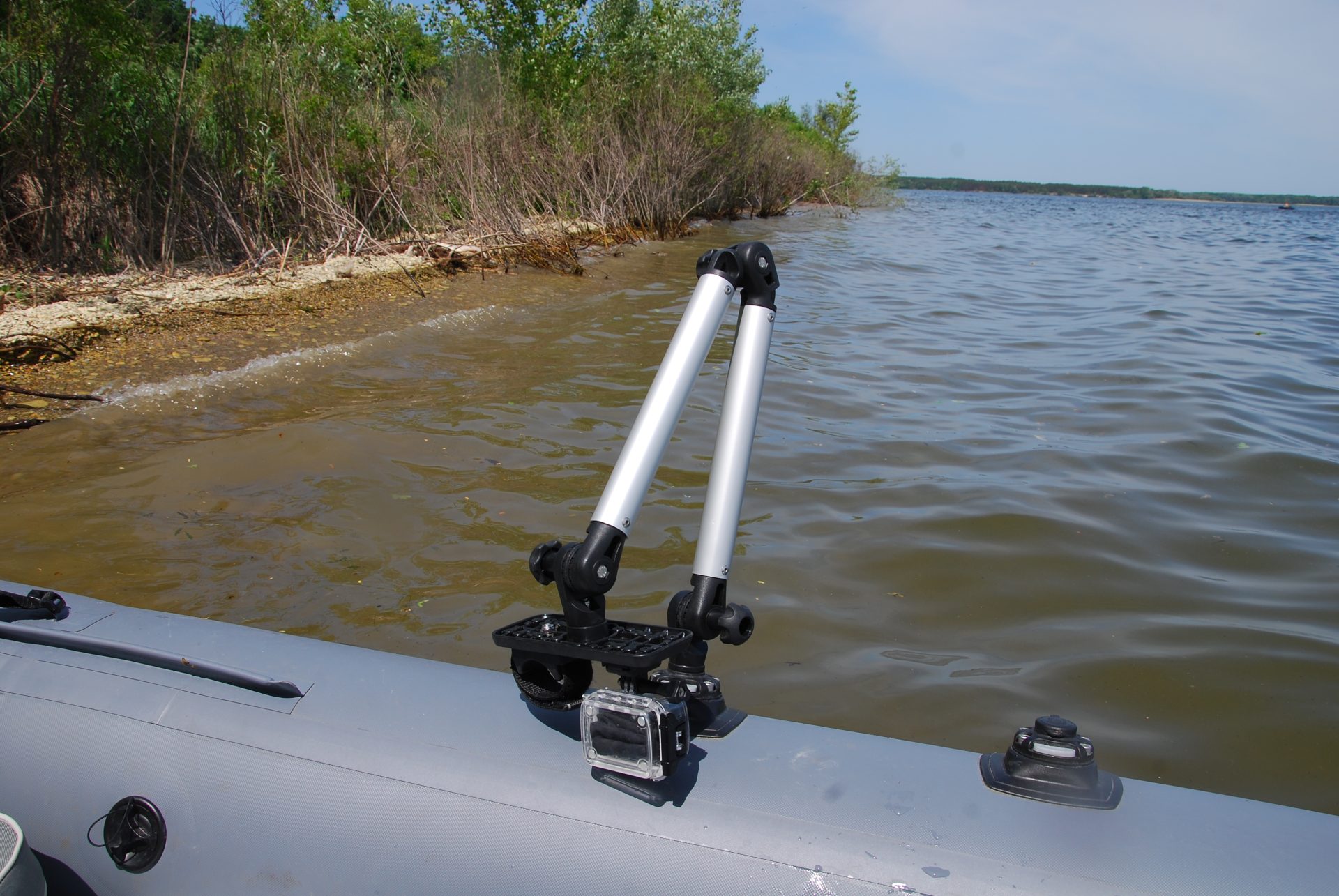

• The advantage of the Ex610 extender is that it consists of two elements connected by a tilt joint, so that it can be folded in half or fixed in a bent position. This makes it possible to adjust the position of the fixed equipment even more flexibly.

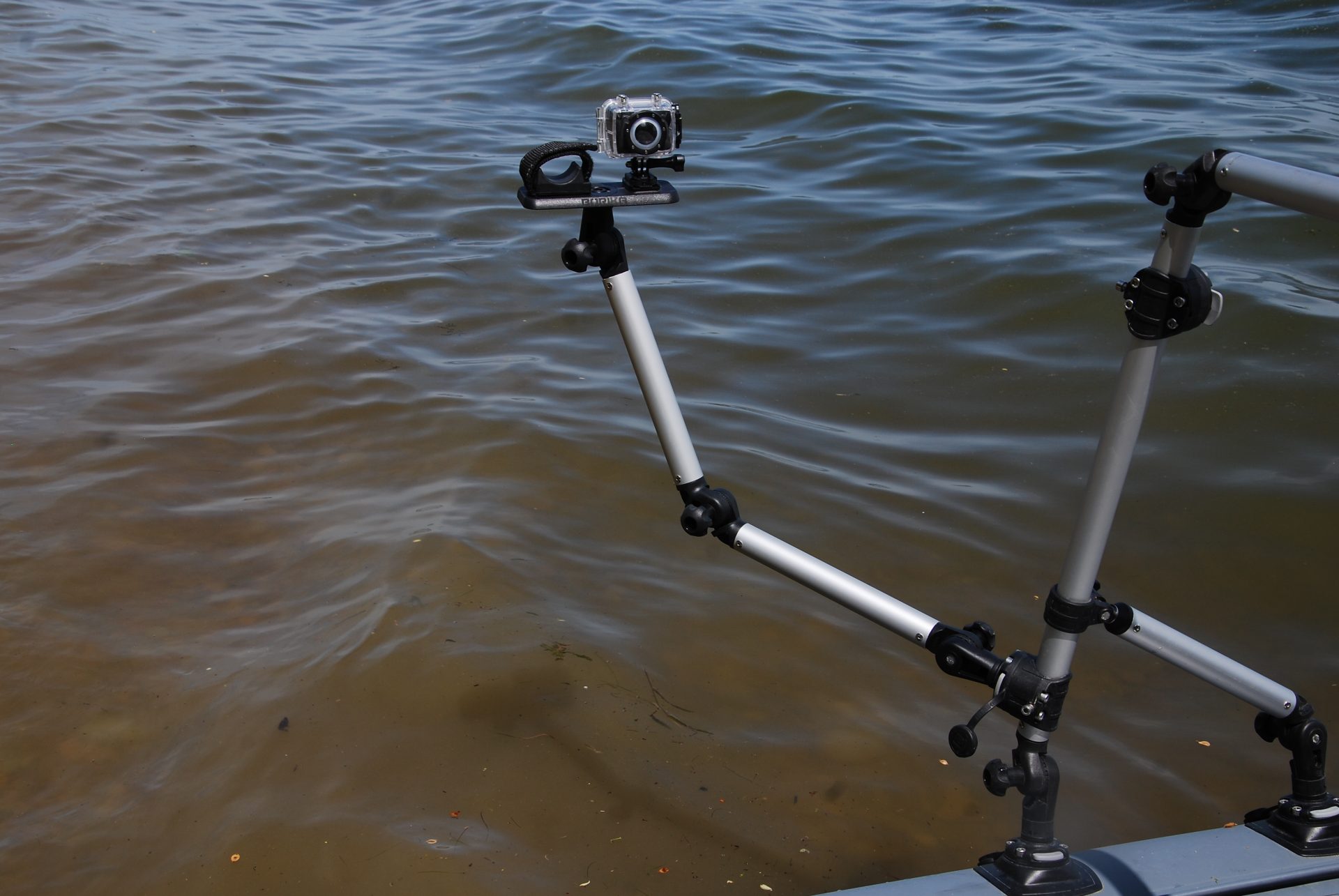

• By connecting such an extender to an accessory equipped with side splines, the user receives at least three tilt joints, each can be adjusted in 27.7° increments and fixed in the chosen position tightening a hex knob nut.
• When folded, the Ex610 is compact and takes up little space when transporting.
• The design of the extender comprises two connectors with side 27.7° splines, allowing to make assemblies with the same side splines of the accessory.

Materials: fiberglass-reinforced polyamide, powder coated anodized aluminium, A2 (AISI 304) stainless steel, brass.

In the package: an Ex610 extender.

Tips on using & installation:

• Installing the extender is simple — you need to dissemble the tilt joint of the accessory, connect the splines of the extender on one edge with the side splines of the accessory itself, and on the other — with the side splines of the adapter of accessory, which allows the entire structure to be fixed in the mount on the vessel. Use knobs, the fasteners, included in the Ex632 package, and the fasteners of the accessory to fix the structure.
• Adding more Dp230 adjusting washers, you can decrease the pitch of the joint to 7.5°.
• The 27.7° side splines also allow for adding some transition adapters for installing accessories from other brands.
• The extender tube with a diameter of 32 mm can be used for installation of FMr132 and FMr232 mounting systems, which allow for fixing additional BORIKA FASTen® accessories.
• It is necessary to take into account whether the mounting system in which the assembly with the extender is fixed can be used for increased dynamic loads. In the descriptions of mounting sets you will find information on what loads they are designed for. You also need to understand that the reliability of the entire structure depends not only on the strength of the mounting system, but also on the strength of the surface or structure on which it is installed.
• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.
