ΚΑΛΑΜΟΘΗΚΗ ΜΕ ΒΑΣΗ ΓΙΑ ΡΕΛΙ Ø22/25 HTr213 BORIKA FASTen

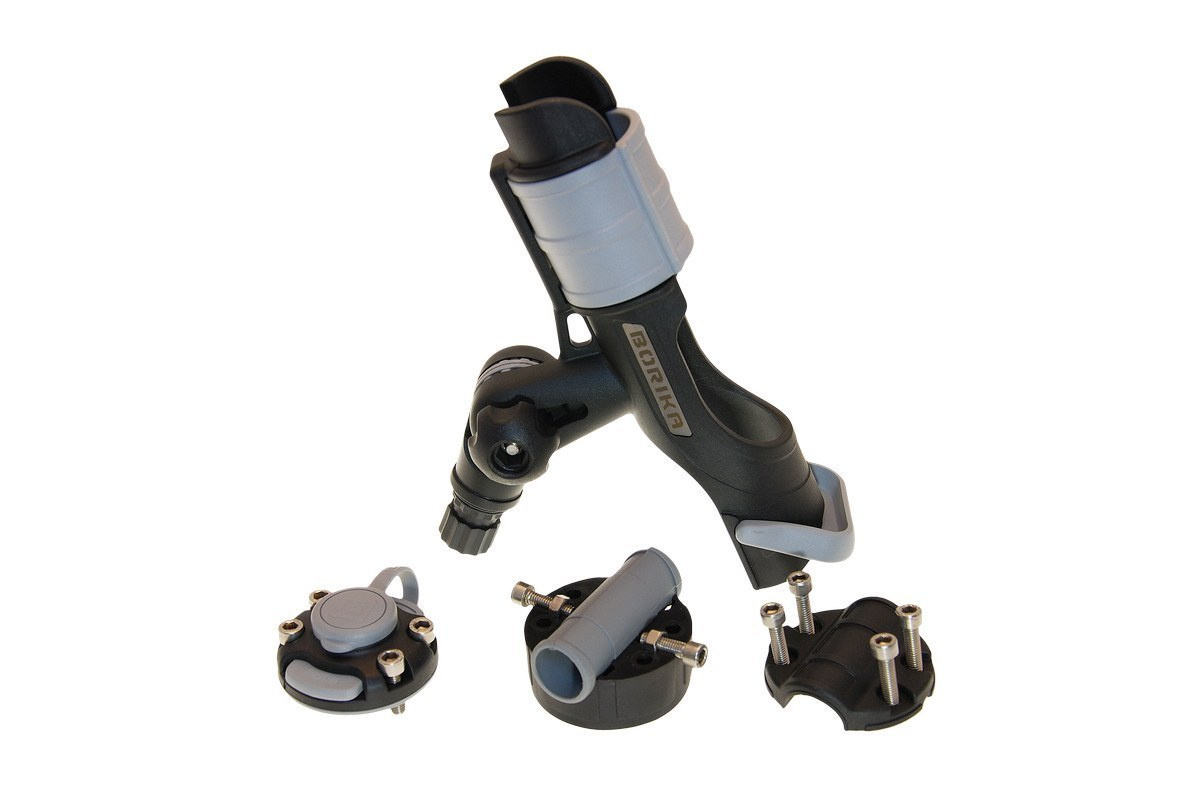

HTr213 – Rod holder with the kit for installation on Ø 22 / 25 mm tubes and rails (Ht213 + FMr125)

Καλαμοθήκη: https://fishingaccessories.gr/product/%ce%ba%ce%b1%ce%bb%ce%b1%ce%bc%ce%bf%ce%b8%ce%b7%ce%ba%ce%b7/

Βάση για ρέλι: https://fishingaccessories.gr/product/fmr125/

Product description:

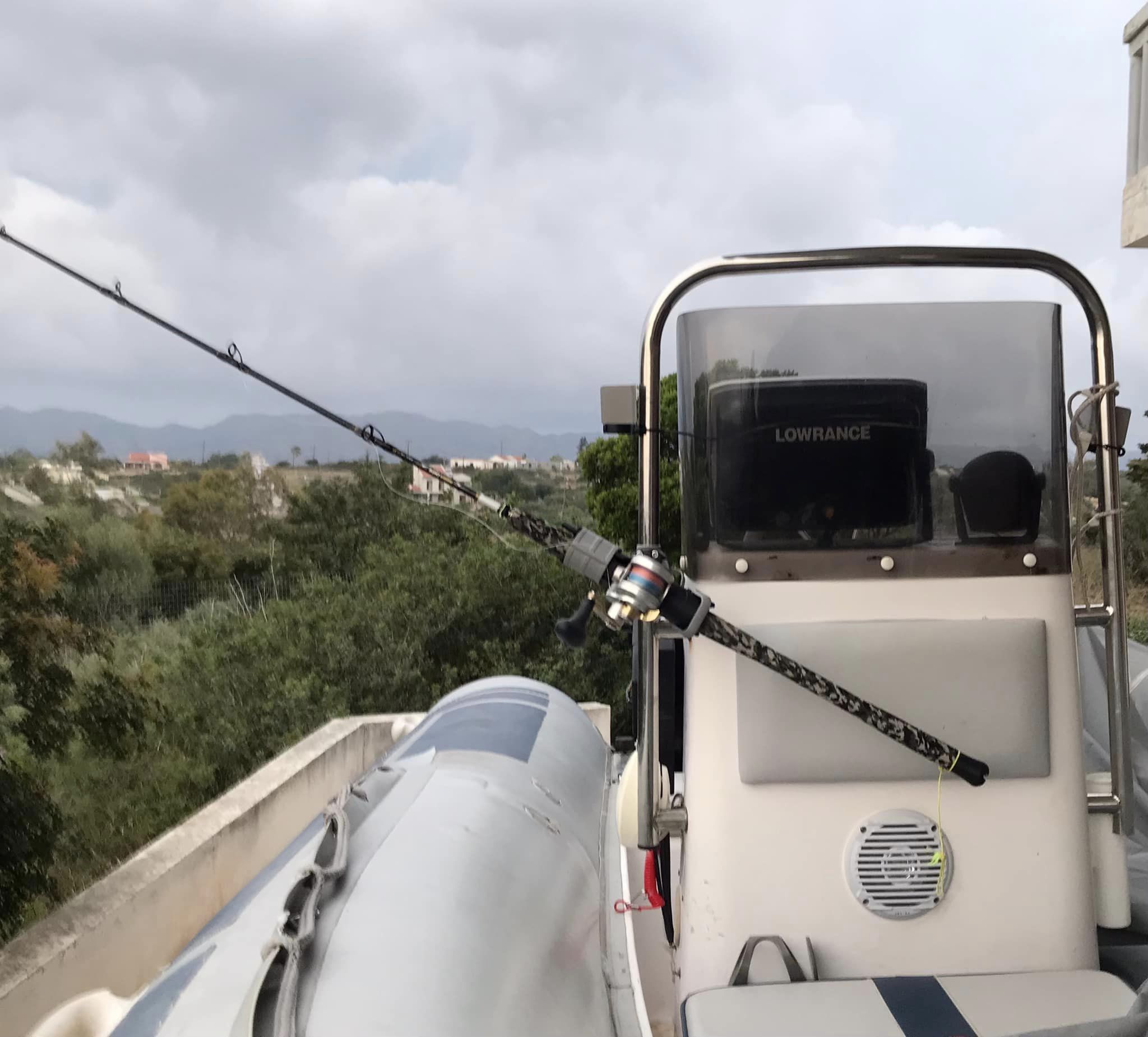

• The kit (Ht213 + FMr125) is a perfect solution for mounting the spinning rod on any tube or rail of 22 or 25 mm in diameter. Allows for immovable fixation of the spinning rod holder, avoiding axial rotation and sliding, even under increased dynamic loads, which are common for trolling fishing.
• Ht213 is a universal rod holder, suitable for spinnings with a handle diameter of up to 38 mm and different types of reels: inertia, electric, baitcasting (multiplier) and fixed-spool.
• The handle of the spinning is securely fixed with a ring retainer, which protects the tackle from falling into the water, when biting large fish and during transportation. The retainer allows for quickly getting out of the spinning rod if necessary.
• A stopper at the rear of the holder serves as a limiter and prevents axial rotation of the spinning rods with a cruciform slot in the end of the handle.
• To maximally protect the tackle from loss, the holder has a hole for attaching a safety leash carabiner.
• The holder and the adapter, which is fixed in the mount, are connected by a tilt joint with 27.7° splines. For more precise tilt adjustments adapter washers with 7.5° splines are included to the assembly.
• The mounting system included in the kit is designed for high loads and suits for fixing any BORIKA FASTen® accessories: fish finder plates and transducer arm mounts, action camera monopods, navigation lights, rigging, awnings, trolling stands, etc. With conversion adapters, which are presented in the BORIKA FASTen® catalog, you can fix in the mount some accessories and devices from other brands ( SCOTTY®, RAM®, RAILBLAZA®, YakAttack®, carp fishing tackles, etc.).
• The mount has four attachment points to the pad. This provides additional strength under increased loads. By loosening the screws which fasten together the parts of the pad, the system can be easily rotated around the rail axis and moved along the tube.
• The Ht213 spinning rod holder can be easily rearranged into any other BORIKA FASTen® mount located in another place of the vessel, and also can be quickly got out after the end of fishing. Fixation is fast and simple: switch the locking mechanism into the UNLOCK position, insert an adapter all the way into the mount, and move the retainer into the LOCK position. You can rotate the holder in 30° increments.

Materials: fiberglass-reinforced polyamide, PVC, A2 (AISI 304) stainless steel, brass.

In the package: an Ht213 spinning rod holder, an FMr125 mounting system, fasteners (two M6*20 DIN 912 screws and two M6 DIN 934 nuts), a step-by-step installation guide.

Tips on using & installation:

• Installation of the FMr125 mounting system does not require drilling and should be carried out in accordance with a step-by-step guide, supplied with each kit.
• For immovable fixation use two provided side screws, which prevent sliding and axial rotation of the pad.
• The elastic liner allows the system to be installed on tubes with a diameter of 22 mm and provides additional protection against dents on the rail when using the fixing side screws.
• Separating the splines you can supplement the holder with BORIKA FASTen® extenders from 10 to 30 cm with the same splines, allowing the accessory to be mounted overboard or above the installation surface, which is especially convenient, for example, for using spinning rods with long handles.
• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.
