Εξάρτημα Συγκράτησης Άγκυρας με Αυτόματο στοπ έως 8kg FASTen Al002

Al002 – Anchor Lock with Automatic Stopper

Product description:

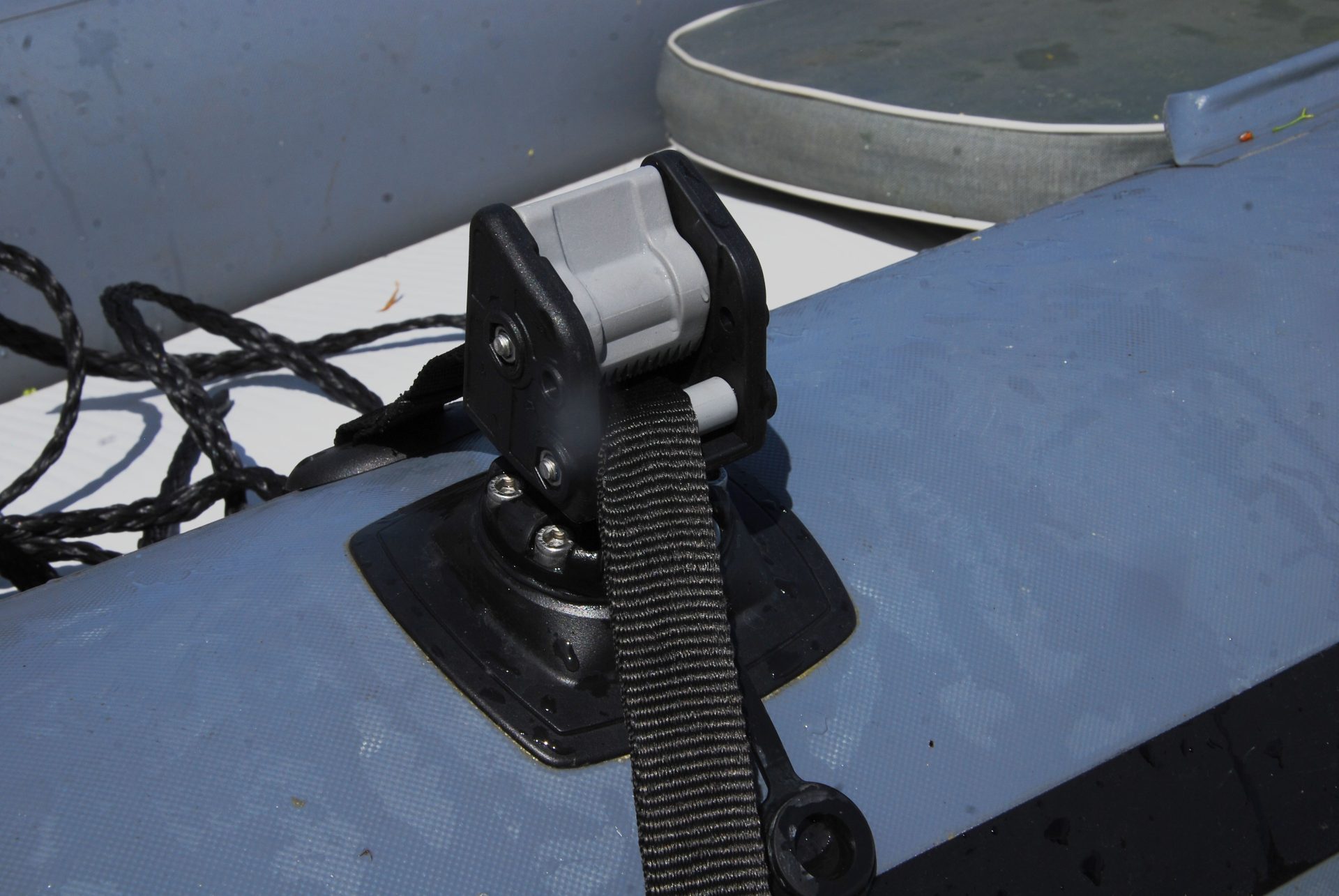

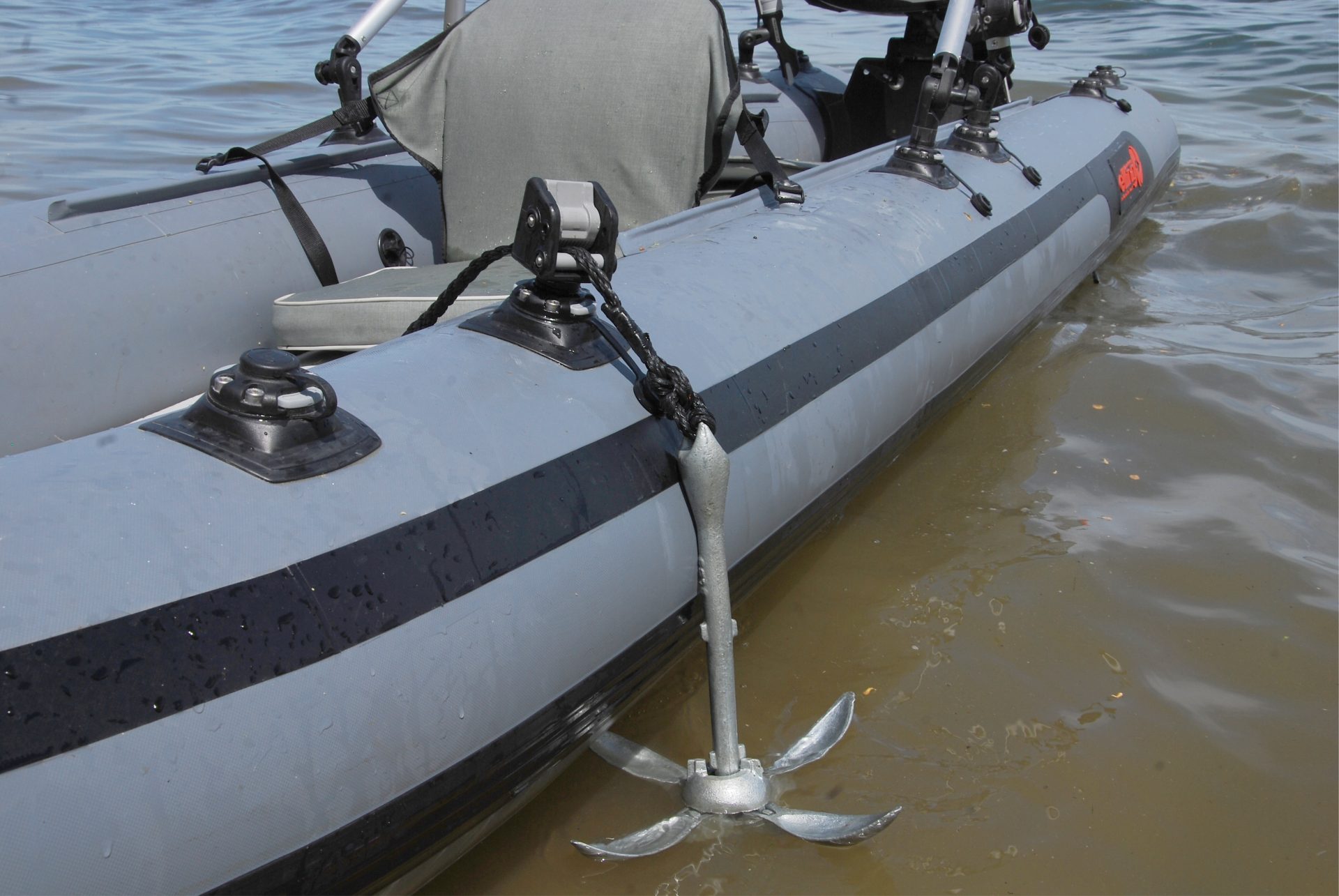

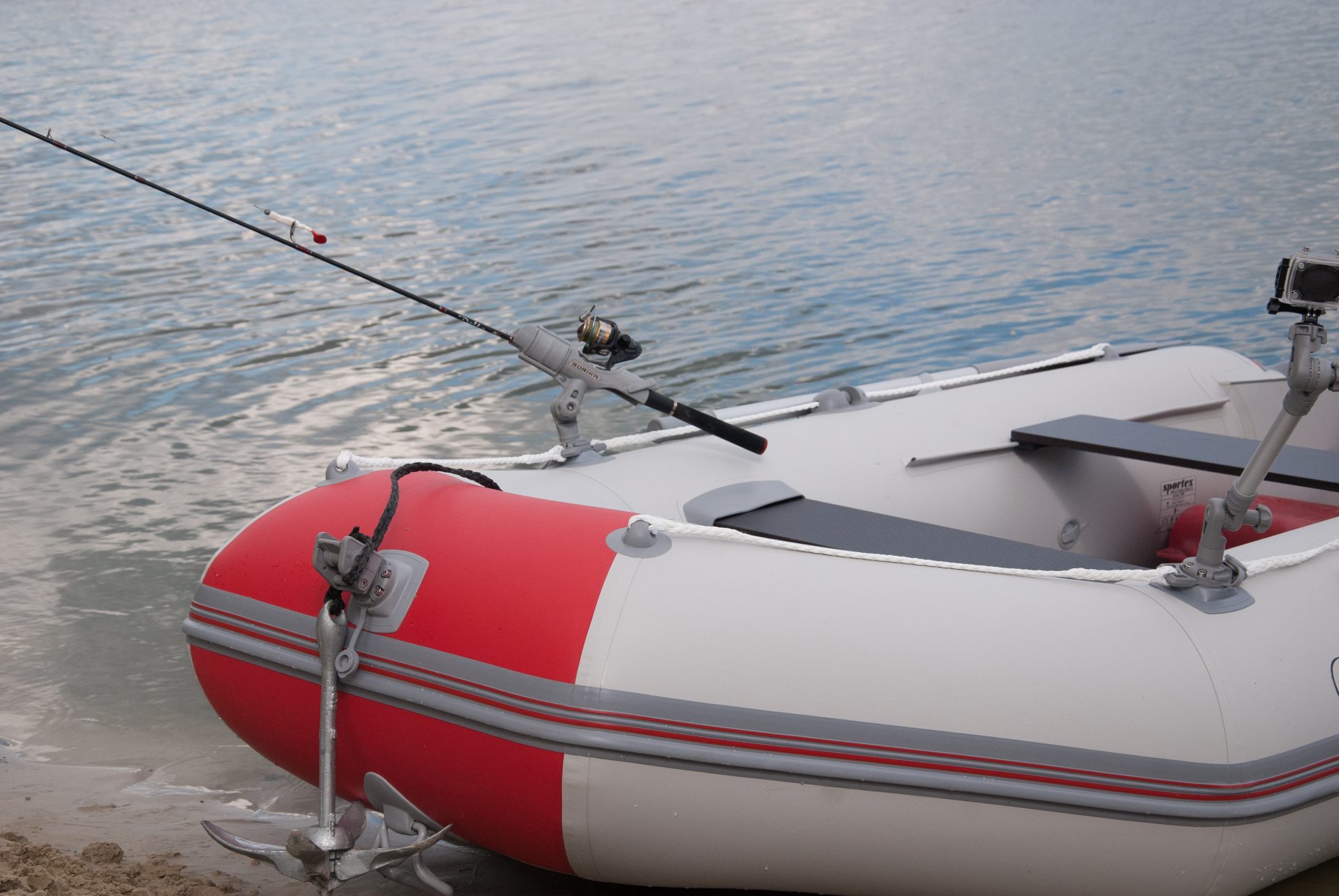

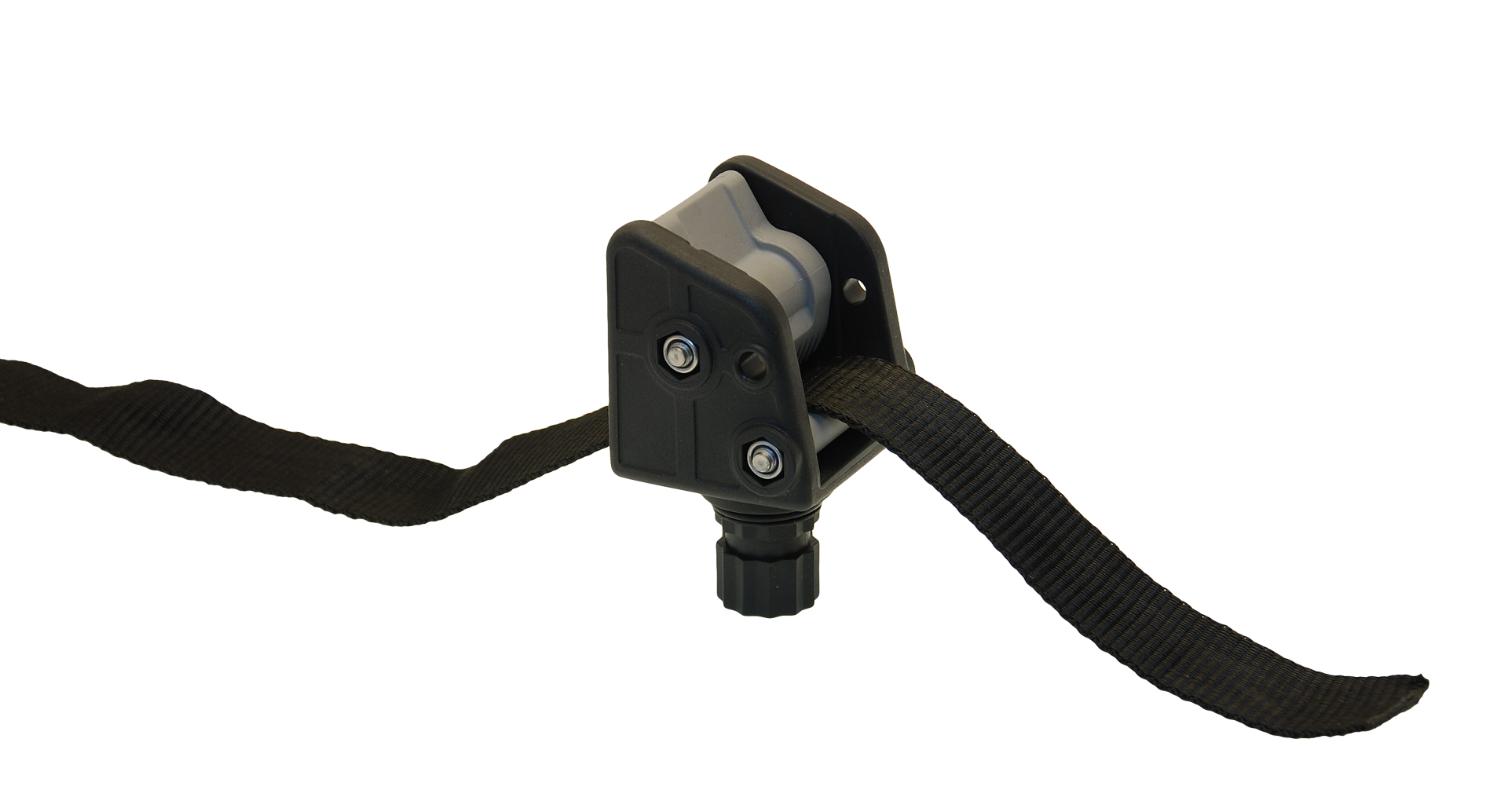

• Is suitable for holding an anchor weighing up to 8 kg on various types of vessel. Fits for a halyard up to 10 mm and belts up to 35 mm wide and up to 2.5 mm thick.

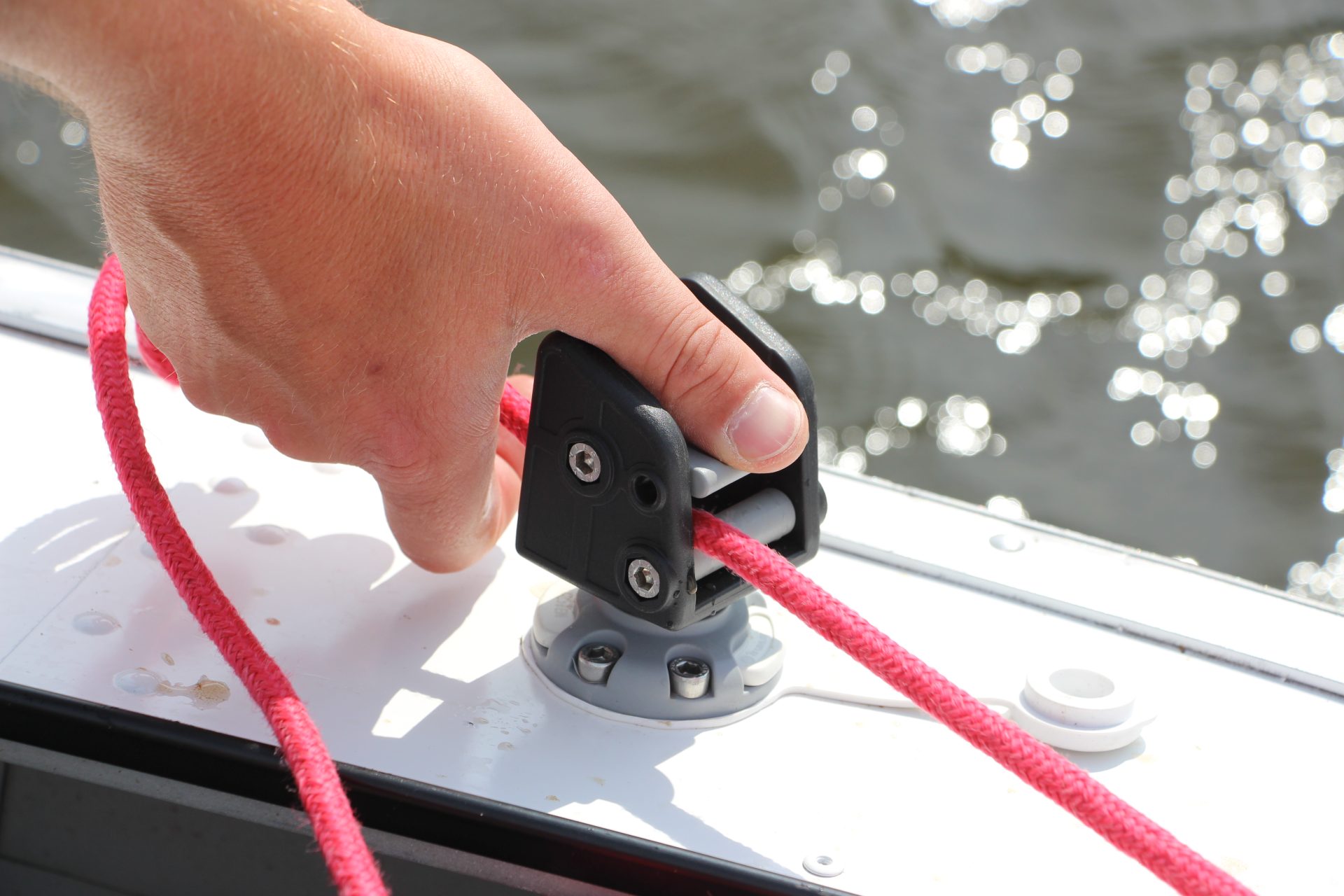

• The spring-loaded locking system automatically fixes the anchor: just pull the rope while hoisting the anchor.
• For easy lowering, a releasing system is provided: just pull the cord on the holder body.
• A convenient roller makes it easier to slide a belt or halyard.

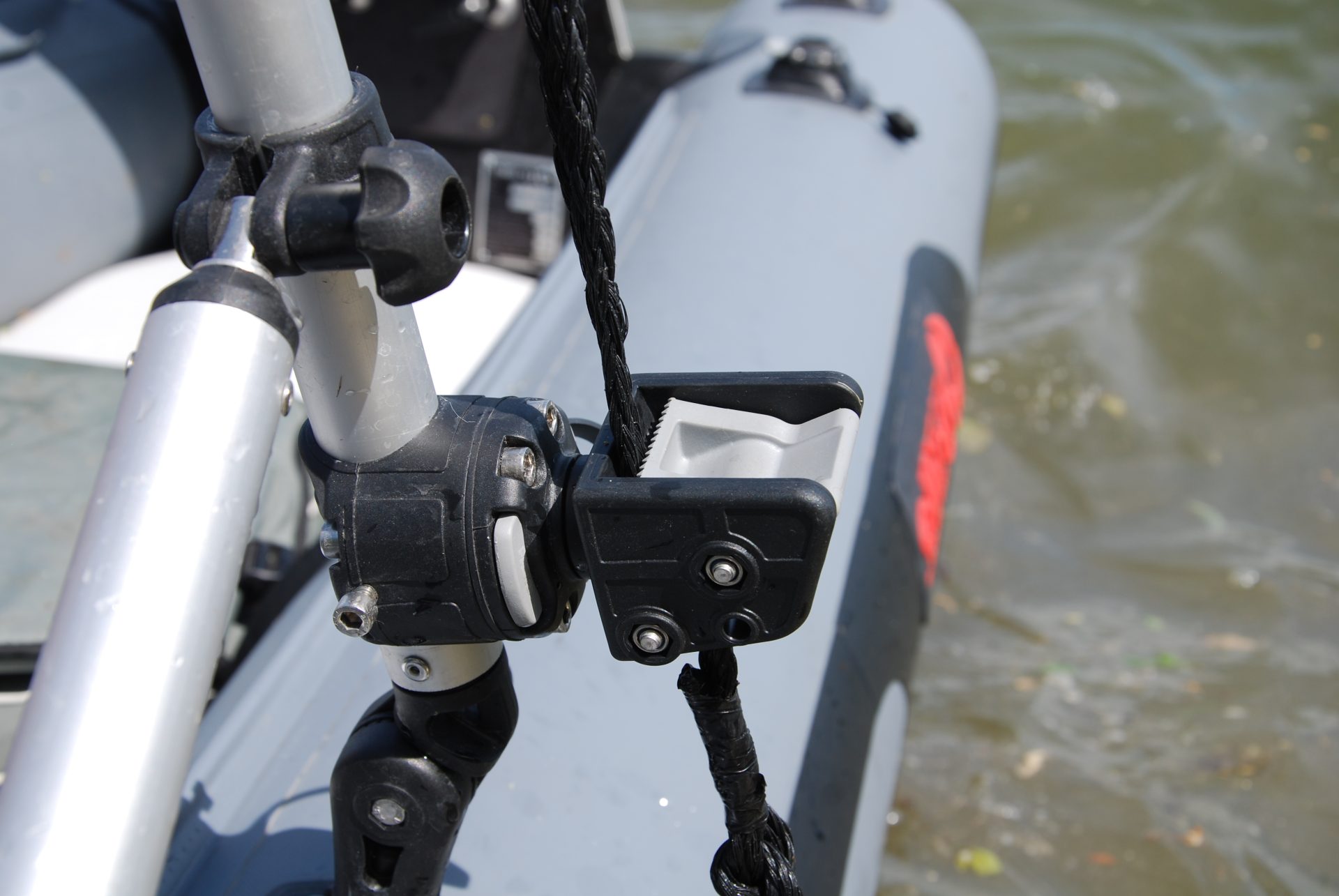

• The holder can be installed in any BORIKA FASTen® mounting system, designed for medium and high loads.

Materials: fiberglass-reinforced polyamide, A2 (AISI 304) stainless steel.

In the package: an Al002 anchor holder.

Tips on using & installation:

• By attaching a longer rope to the releasing cord, the user gets the opportunity to release the anchor halyard while being at a distance from the holder.
• To prolong the service life of the product, after using it in sea water, rinse it with plenty of fresh water.

Technical details:

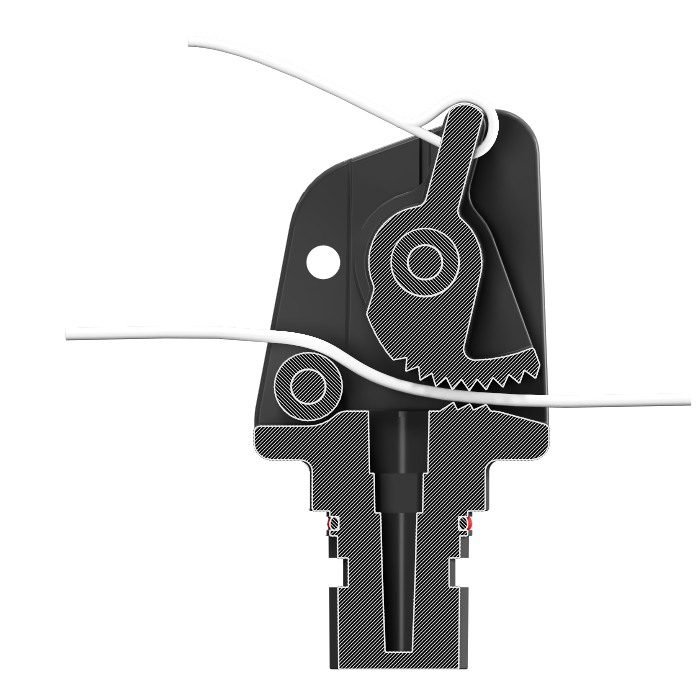

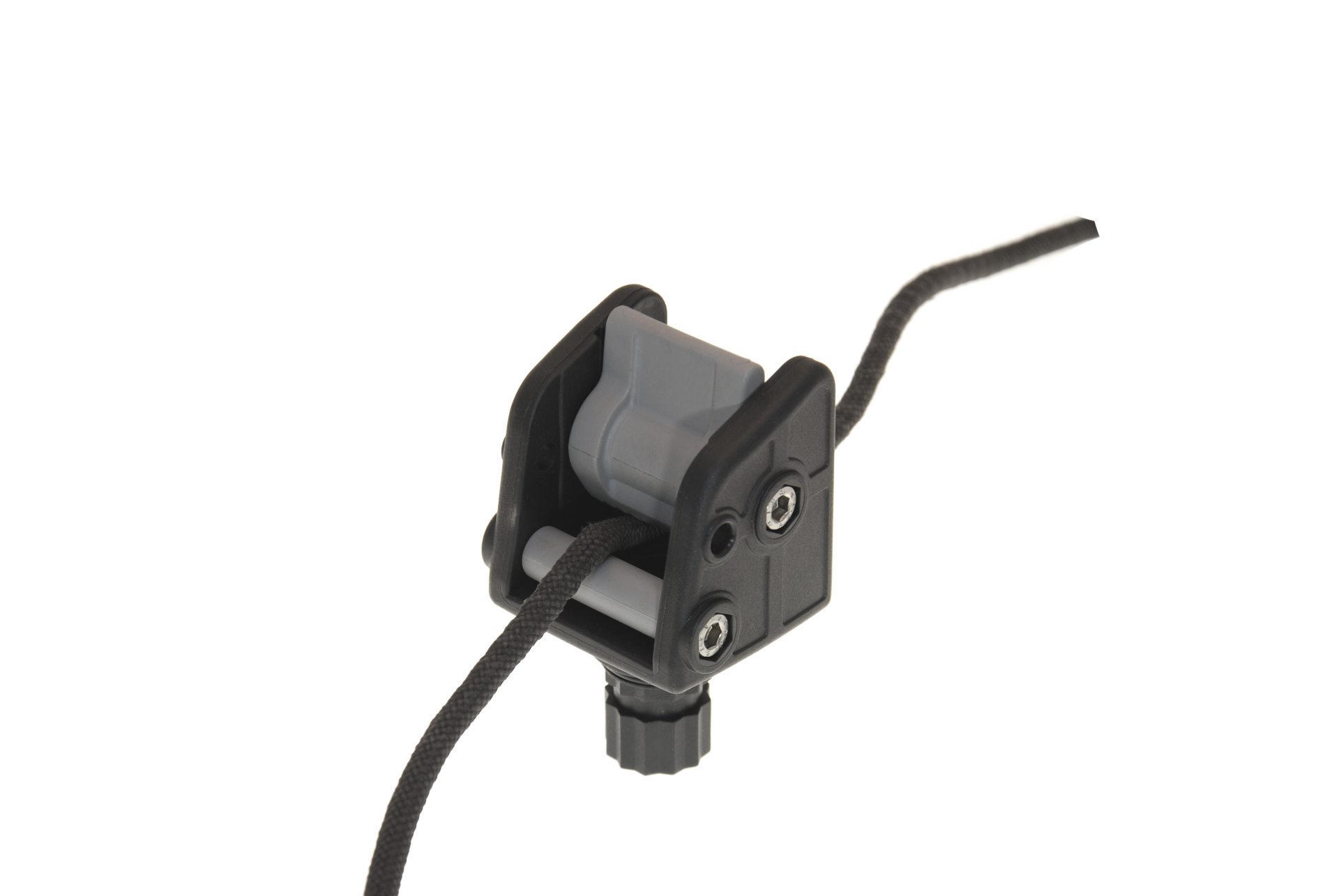

It is intended for lowering and hoisting anchors weighing up to 8 kg. The design consists of a cast body with a male adapter shaped as a 12 pointed star, a stopper with a cord for releasing a rope or belt, a spring and a roller. Suitable for a halyard of Ø up to 10 mm and a belt up to 35 mm wide and up to 2.5 mm thick. The assembly includes fasteners: two M6*55 DIN 912 screws and two M6 DIN 985 self-locking nuts. The adapter is equipped with an O-ring. The main parts are made of fiberglass-reinforced polyamide. Fasteners and the spring are made of A2 (AISI 304) stainless steel.
